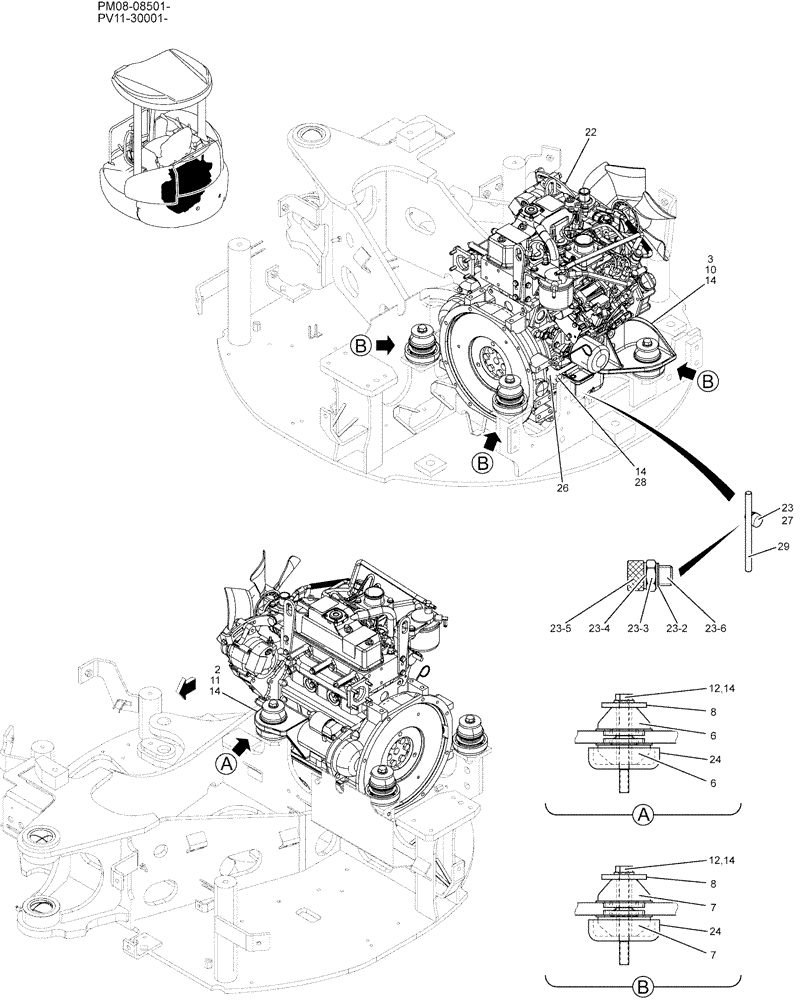

Запчасти Case CX27B (01-005) - ENGINE INSTAL (10) - ENGINE

PM02P00009F1

ENGINE INSTAL

1шт.

2

PM02P01064P1

BRACKET

1шт.

3

PM02P01065P1

BRACKET

1шт.

6

PW02P01054D1

RUBBER MOUNTING

2шт.

7

PW02P01054D3

RUBBER MOUNTING

6шт.

8

PW01P01022P1

WASHER

4шт.

10

ZS18C12025

SCREW,Hex, M12 x 25mm

4шт.

11

ZS18C12030

SCREW,Hex, M12 x 30mm

4шт.

12

ZS18C12120

SCREW,Hex, M12 x 120mm

4шт.

14

ZW16H12000

WASHER

13шт.

22

PM02P00008F1

ENGINE ASSEMBLY

ENGINE ASSY

1шт.

SEE FIGURE 01-004

1шт.

23

PW02P01057F1

PLUG,M22 x 1.5

1шт.

23-2

LQ02PU1002S002

WASHER

1шт.

23-3

LQ02PU1002S003

BODY

1шт.

23-4

LQ02PU1002S004

O-RING

1шт.

23-5

LQ02PU1002S005

CAP

1шт.

23-6

LQ02PU1002S006

PLUG

1шт.

24

PW02P01041P1

COVER

4шт.

26

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

27

PU01P01035P1

HOSE

Hose Assy with Straight Coupler

1шт.

27

PM91Z01005P1

HOSE

Hose Assy with Elbow Coupler

1шт.

27

PW02P01047D2

HOSE

1шт.

28

ZS18C12020

SCREW,Hex, M12 x 20mm

1шт.

29

PM02P01066P1

PACKING

1шт.
