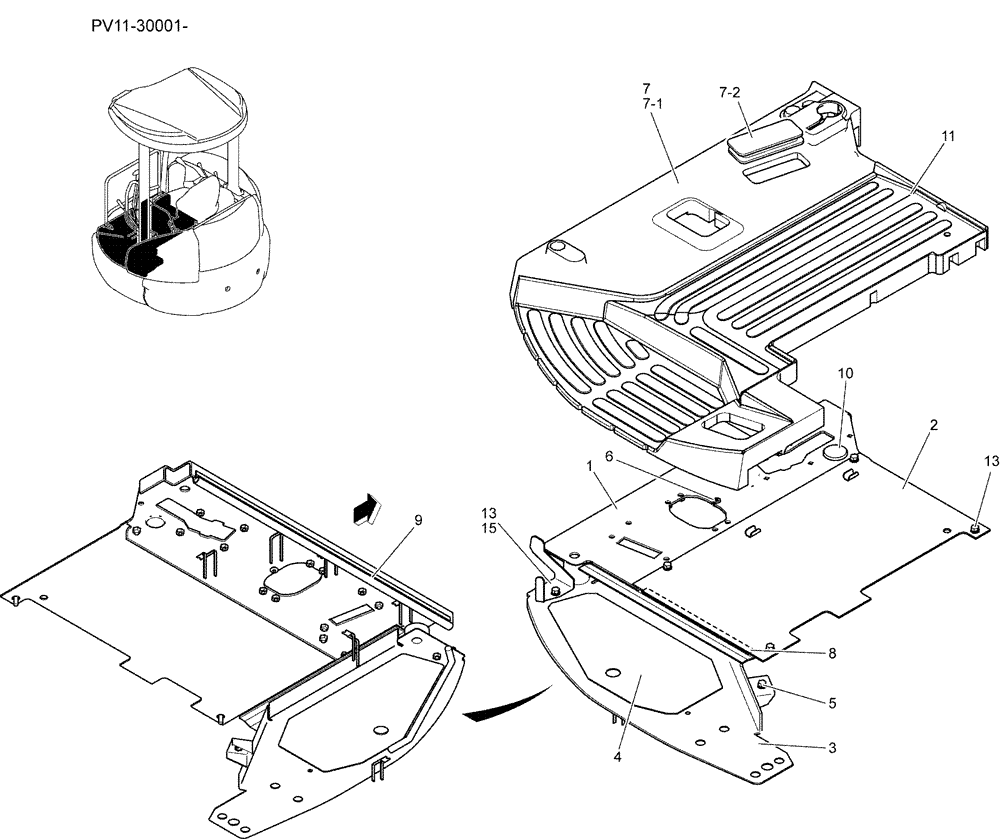

Запчасти Case CX27B (01-041) - PLATE GROUP, FLOOR (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

PLATE GROUP, FLOOR (PV03M00022F1)

1шт.

1

PW03M01535P2

PLATE

1шт.

2

PW03M01592P1

COVER

COVER

1шт.

3

PW03M01860P1

BRACKET

BRACKET

1шт.

4

PW03M01820P1

COVER

COVER

1шт.

5

ZM22C08020

BOLT

1шт.

6

YN03M01159P1

GROMMET

1шт.

7

PV26M00004F1

MAT

1шт.

7-1

PV26M00002P1

MAT

1шт.

7-2

PV03M01139P1

GROMMET

1шт.

8

PW03M01545P1

RUBBER

1шт.

9

PH21C01136DF

WEATHERSTRIP

1шт.

10

PM03M01357P1

PLUG

1шт.

11

PM26M00022P1

FLOOR MAT

MAT, FLOOR

1шт.

13

PM21C01202P1

BOLT

5шт.

15

PW03M01832P1

PLATE

1шт.
