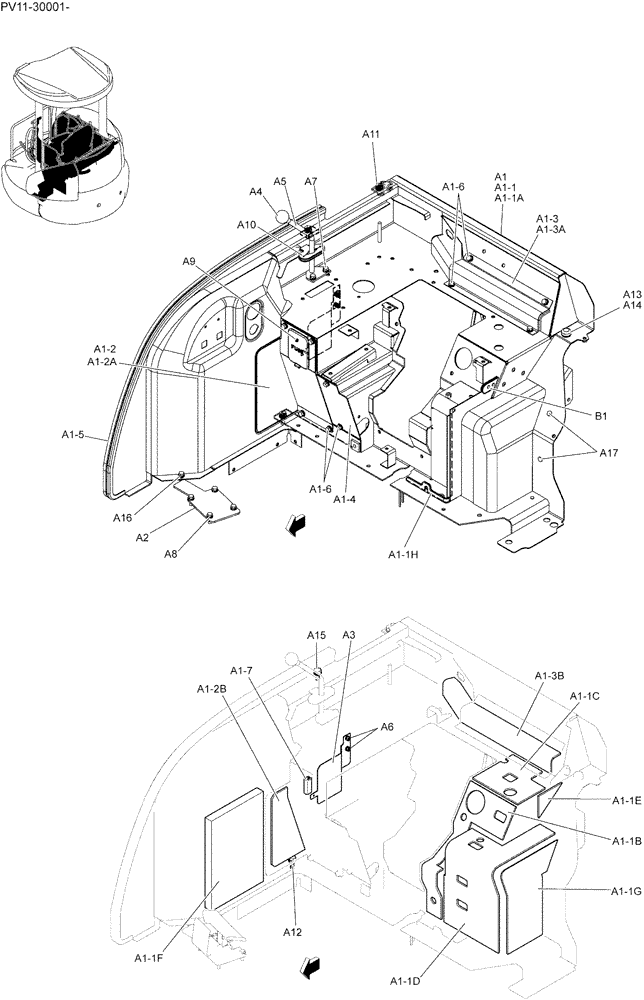

Запчасти Case CX27B (01-030) - STAND ASSY, CONTROL (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

.

CONTROLS, OPERATORS (PM03M00056F1)

1шт.

a1

PM10M00004F1

STAND ASSY, CONTROL

1шт.

a1-1

PM10M01242F1

STAND ASSY

1шт.

a1-1a

PM10M01243P1

STAND

1шт.

a1-1b

PM10M01149P1

FOAM INSULATION

1шт.

a1-1c

PM10M01191P1

FOAM INSULATION

1шт.

a1-1d

PM10M01151P1

FOAM INSULATION

1шт.

a1-1e

PM10M01065P1

FOAM INSULATION

1шт.

a1-1f

PM10M01187P1

FOAM INSULATION

1шт.

a1-1g

PH10M01045P1

FOAM INSULATION

1шт.

a1-1h

PM10M01247P1

GASKET

RUBBER

1шт.

a1-2

PM03M01679F1

COVER ASSY

1шт.

a1-2a

PM03M01628P1

COVER

1шт.

a1-2b

PM03M01680P1

FOAM INSULATION

1шт.

a1-3

PM03M01622F1

COVER ASSY

1шт.

a1-3a

PM03M01623P1

COVER

1шт.

a1-3b

PM03M01624P2

RUBBER

1шт.

a1-4

PM03M01681P1

COVER

1шт.

a1-5

PM21C01573D1

WEATHERSEAL STRIP

1шт.

a1-6

PA03M01093D2

BOLT

10шт.

a1-7

PM22C01020DR

TRIM PANEL

1шт.

a2

PM55M01023P1

PLATE

1шт.

a3

PM03M01705P1

COVER

1шт.

a4

PV03M01043P1

HANDLE GRIP

1шт.

a5

PW03M01623P1

LEVER

1шт.

a6

ZM61C06012

BOLT

2шт.

a7

ZM22C08016

BOLT

2шт.

a8

ZM22C08025

BOLT

4шт.

a9

PW03M01543P1

GROMMET

1шт.

a10

PW03M01546P2

GROMMET

1шт.

a11

PM06C01045D3

BOLT

1шт.

a12

ZM22C10030

BOLT

1шт.

a13

ZM22C12050

BOLT (STEP)

1шт.

a14

PW03M01557P1

CAP

1шт.

a15

ZM22C10025

BOLT

1шт.

a16

ZM22C08020

BOLT

1шт.

a17

PV02B01073D2

CAP

1шт.

PW03M01715F1

GROMMET

1шт.

b1

PW03M01711P1

GROMMET

1шт.
