Запчасти Case CX27B (03-001) - BOOM ASSY, STD 2.15M (84) - BOOMS, DIPPERS & BUCKETS

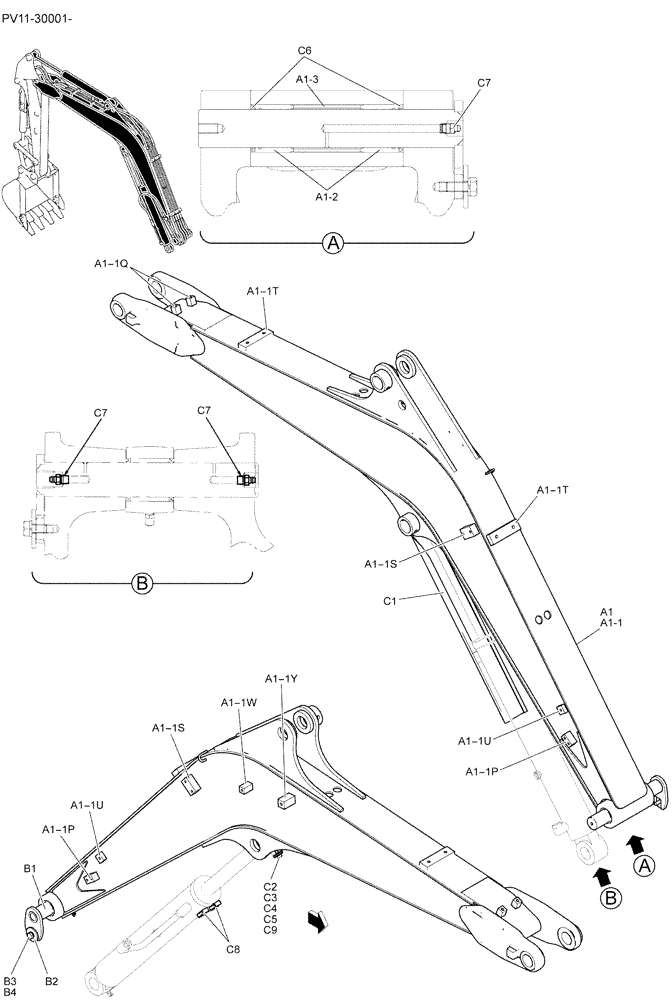

Схема запчастей Case CX27B - (03-001) - BOOM ASSY, STD 2.15M (84) - BOOMS, DIPPERS & BUCKETS
b1
a1-1s
c7
c7
a1-1p
a1-1
c7
a1-1s
a1-2
a1-1p
c5
c1
b3
a1-1y
c8
b2
a1-1u
a1-1q
a1
a1-1w
c6
c4
b4
c2
c3
a1-1t
c9
a1-1u
a1-3
a1-1t

Артикул

Название

Примечание

Количество

BOOM ASSY (PV02B00151F1)

1шт.

a1-1

NSS

NOT SOLD SEPARAT

BOOM, HOE

1шт.

a1-1p

PW02B01260P1

BLOCK

2шт.

a1-1q

PM02B01253P1

BLOCK

2шт.

a1-1w

R16T0184D5

BLOCK

1шт.

a1-1t

PM02B01266P1

BLOCK

2шт.

a1-1s

PH12B01113P1

BLOCK

2шт.

a1-1u

PR02B01058P1

BLOCK

2шт.

a1-1y

R16T0373D7

BLOCK

BLOCK, TAPPED

1шт.

a1-2

PM12B01203P1

BUSHING,40mm ID x 50mm OD x 40mm L

2шт.

a1-3

PM02B01255P1

COLLAR

1шт.

BOOM INSTAL (PM02B00114F1)

1шт.

b1

PM02B01318P3

PIN

1шт.

b2

2418T21137

WASHER

1шт.

b3

ZS18C10020

SCREW,Hex, M10 x 20mm

1шт.

b4

ZW26X10000

LOCK WASHER

1шт.

BOOM GROUP (PV02B00131F1)

1шт.

c1

PM02B01376P1

COVER

1шт.

c2

ZS18C10030

SCREW,Hex, M10 x 30mm

1шт.

c3

ZW26X10000

LOCK WASHER

1шт.

c4

ZW16H10000

WASHER

1шт.

c5

PN03M01009D2

WASHER

1шт.

c6

PN54D01001D3

SEAL,40mm ID x 50mm OD x 4mm Thk

2шт.

c7

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

3шт.

c8

PH02B01004P1

TUBE

2шт.

c9

PV02B01297P1

SPACER

SPACER

1шт.

Выбрано товаров: 26
