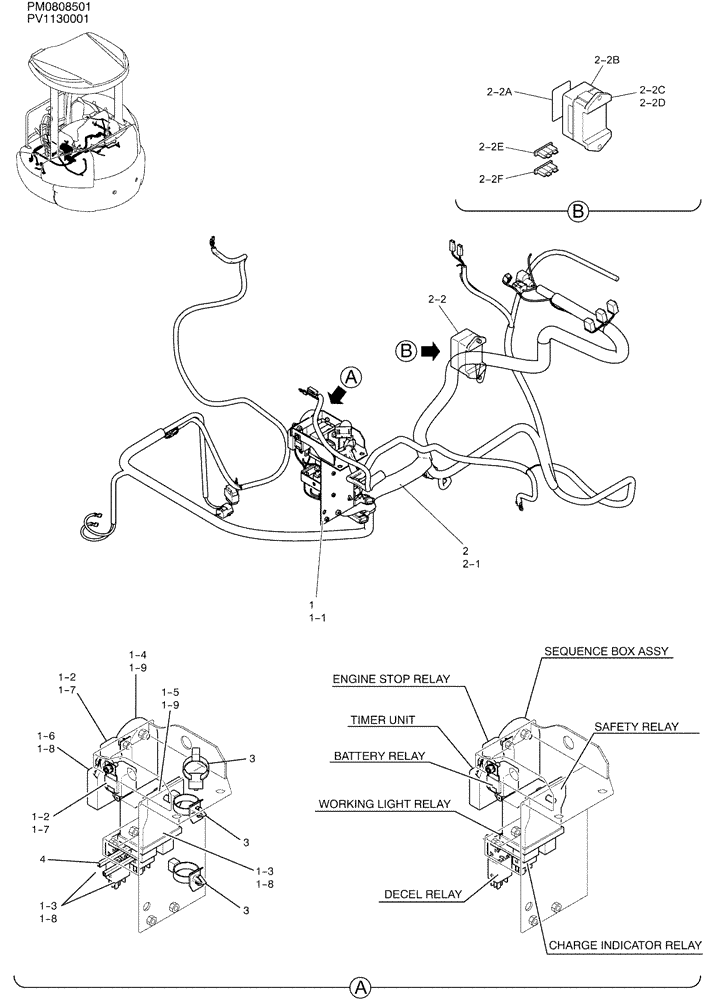

Запчасти Case CX27B (01-077) - RELAY ASSY (55) - ELECTRICAL SYSTEMS

RELAY ASSY (PM24E00044F1)

1шт.

1

PM24E00045F1

RELAY ASSY

1шт.

1-1

PM24E01096P1

PLATE

1шт.

1-2

PH24S00001P1

RELAY,12V, 70amp

2шт.

1-3

PA24E01001P1

RELAY,12V - 20amp

3шт.

1-4

PA24S00002P3

RELAY,DC12V

1шт.

1-5

PX24S00001P1

RELAY

1шт.

1-6

PH25S00002P1

TIMER

1шт.

1-7

ZM61C05012

BOLT

SEMS

2шт.

1-8

ZM61C06016

BOLT

SEMS

3шт.

1-9

ZM61C06020

BOLT

SEMS

2шт.

2

PM14E01037P1

HARNESS

HARNESS

1шт.

2-1

NSS

NOT SOLD SEPARAT

HARNESS

1шт.

2-2

PW73E00003F1

FUSE BOX

FUSE ASSY

1шт.

2-2a

PW73E01004P1

LABEL

1шт.

2-2b

2479U1458S2

COVER

1шт.

2-2c

2479U1458S1

BASE

1шт.

2-2d

2479U1458S3

BLOCK

1шт.

2-2e

2479R655S8

FUSE,10 Amp

2шт.

2-2f

YN73E00001S022

FUSE,30 Amp

7шт.

3

YN03E01001D5

CLIP

3шт.

4

YN22M01006D5

BUSHING,50mm L

1шт.
