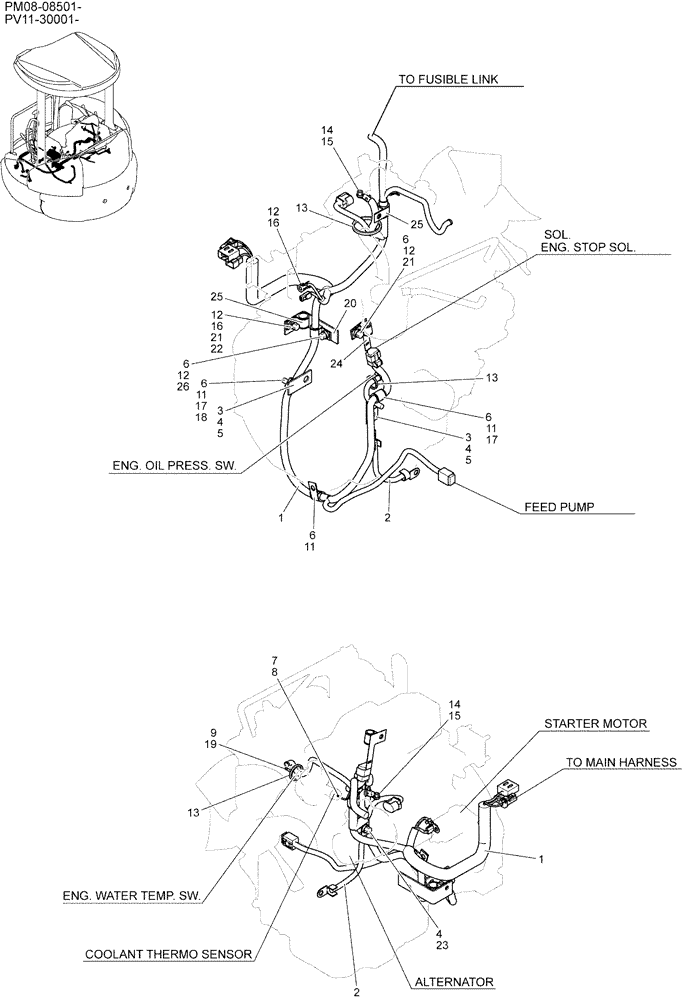

Запчасти Case CX27B (01-076) - HARNESS ASSY, ENGINE (55) - ELECTRICAL SYSTEMS

.

HARNESS ASSY, ENGINE (PM16E00005F1)

1шт.

1

PM16E01026P2

WIRE HARNESS

1шт.

2

PM13E01081D1

CABLE

1шт.

3

PM16E01022P1

PLATE

2шт.

4

ZS18C12020

SCREW,Hex, M12 x 20mm

3шт.

5

ZW16X12000

WASHER

2шт.

6

EW02E01015D6

CLIP

5шт.

7

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge)

1шт.

8

PA13E01027P1

PACKING

1шт.

9

PM50S00006P1

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

(Used for Engine Coolent Temp Warning)

1шт.

11

ZW16X10000

WASHER

3шт.

12

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

4шт.

13

PY01P01043D4

CABLE TIE,4.80mm W x 251mm L

3шт.

14

ZW16X06000

WASHER

1шт.

15

ZN18C06005

NUT

1шт.

16

ZN18C08007

NUT

2шт.

17

ZN18C10008

NUT

2шт.

18

ZW26X10000

LOCK WASHER

1шт.

19

PM16E01011P1

O-RING

1шт.

20

PM16E01023P1

PLATE

1шт.

21

ZS18C08016

SCREW,Hex, M8 x 16mm

2шт.

22

ZW26X08000

LOCK WASHER

1шт.

23

ZW16H12000

WASHER

1шт.

24

PM16E01029P1

CLIP

1шт.

25

EW02E01015D8

CLIP

2шт.

26

ZS18C08020

SCREW,Hex, M8 x 20mm

1шт.
