(05-005) - HEATER ASSY (WITHOUT HEATER)

Запчасти Case CX27B (05-005) - HEATER ASSY (WITHOUT HEATER) (50) - CAB CLIMATE CONTROL

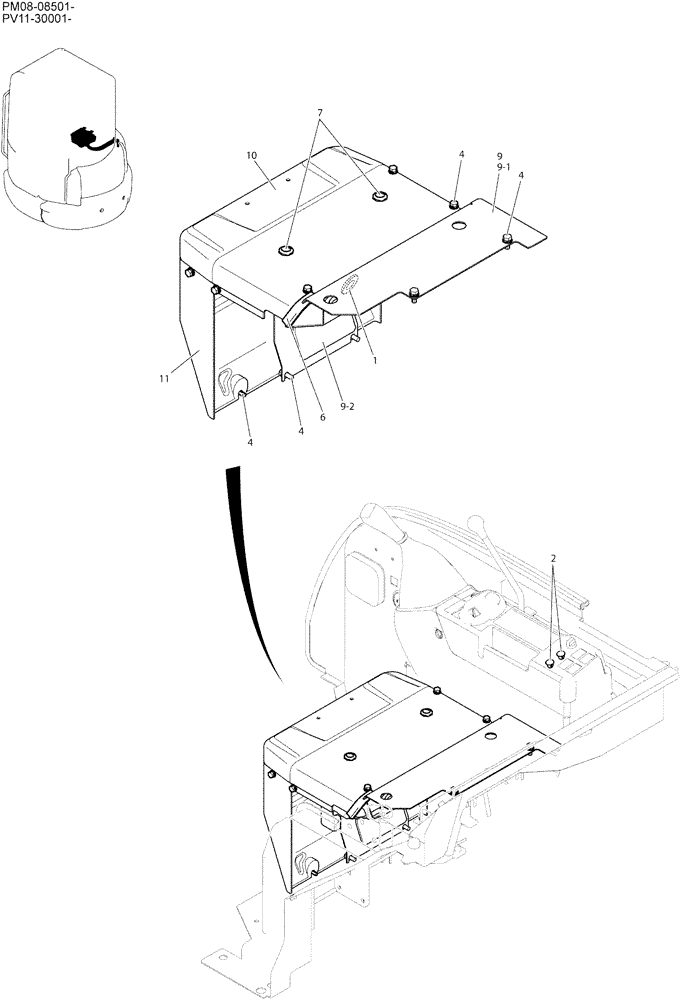

Схема запчастей Case CX27B - (05-005) - HEATER ASSY (WITHOUT HEATER) (50) - CAB CLIMATE CONTROL
9-1
6
7
4
9
4
4
1
9-2
11
10
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HOSE ASSY HEATER (PM21M00012F1)

1шт.

1

2420Z1042

GROMMET

1шт.

2

PW17M01021P1

CAP

2шт.

4

PA03M01093D2

BOLT

10шт.

6

PM22C01013DB

WEATHERSEAL STRIP

1шт.

7

2420R429D4

GROMMET

2шт.

9

PM21M01042F1

COVER ASSY

COVER ASSY

1шт.

9-1

PM21M01040P1

COVER

COVER

1шт.

9-2

PM10M01136P1

FOAM INSULATION

1шт.

10

PW03M01862P1

COVER

COVER

1шт.

11

PM10M01238P1

COVER

COVER

1шт.
