(02-008) - SHOE ASSY

Запчасти Case CX27B (02-008) - SHOE ASSY (48) - TRACKS & TRACK SUSPENSION

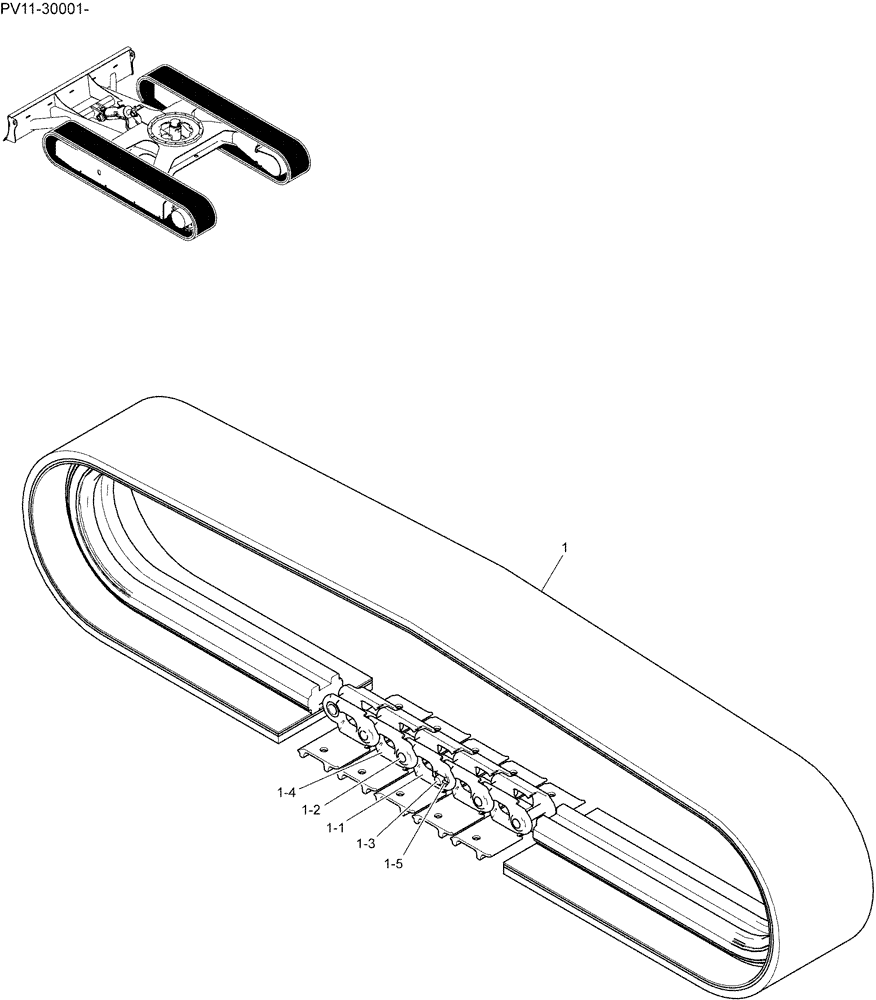

Схема запчастей Case CX27B - (02-008) - SHOE ASSY (48) - TRACKS & TRACK SUSPENSION
1
1-2
1-3
1-4
1-5
1-1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

SHOE ASSY (250W) (PV60D00008F1)

1шт.

1

PV60D00009F1

SHOE (ASSY)

Assy

2шт.

1-1

PM60D00017F1

TRACK SHOE

Assy, Master

1шт.

1-2

PM60D00018F1

SHOE

Assy, Track

40шт.

1-3

PM62D01006P1

PIN,18.93mm OD x 97.5mm L

Master

1шт.

1-4

PM62D01005P1

PIN,19.2mm OD x 92.5mm L

Track

40шт.

1-5

PM62D01008P1

PIN,5mm OD

Master

1шт.
