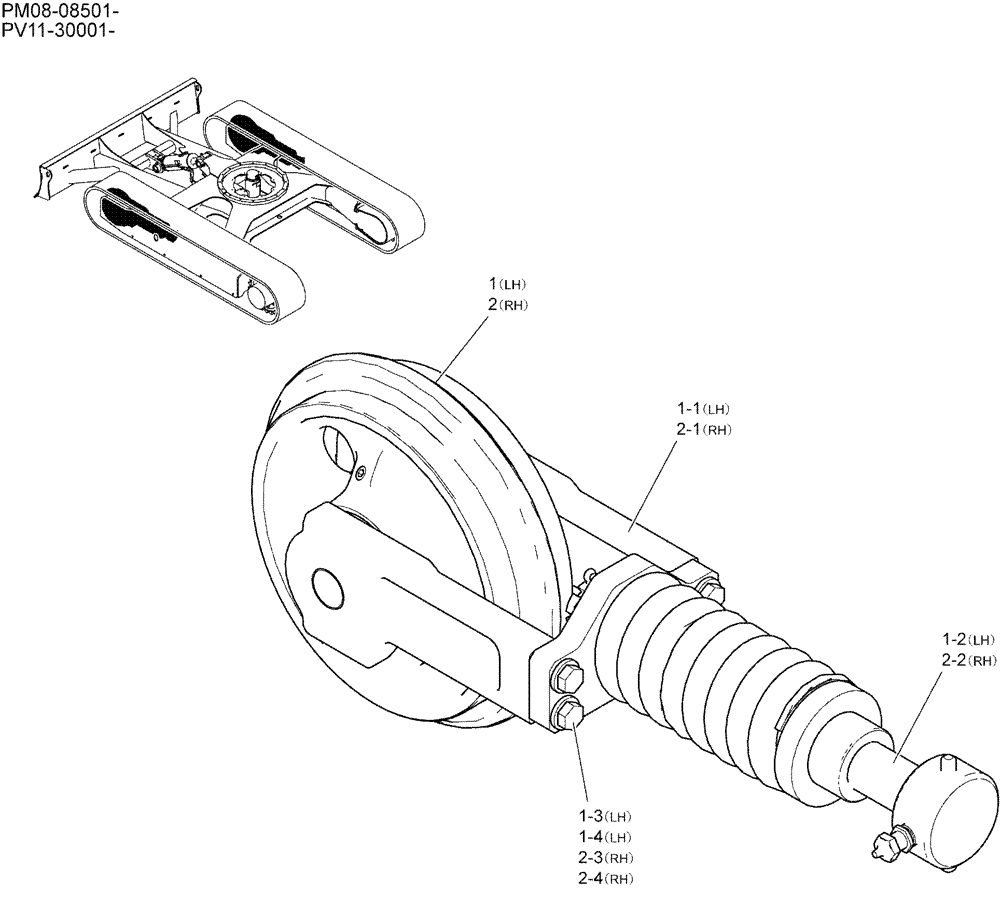

Запчасти Case CX27B (02-003) - IDLER ASSY, CRAWLER (48) - TRACKS & TRACK SUSPENSION

IDLER ASSY, CRAWLER (PV52D00005F1)

1шт.

1

PV52D00006F1

IDLER

1шт.

1-1

PV52D00013F1

IDLER,271mm OD x 461mm W

SEE FIG. 02-004

1шт.

1-2

PV54D00008F1

IDLER

SEE FIG. 02-005

1шт.

1-3

ZS18C10040

SCREW,Hex, M10 x 40mm

4шт.

1-4

ZW16H10000

WASHER

4шт.

2

PV52D00009F1

IDLER

1шт.

2-1

PV52D00014F1

IDLER,271mm OD x 325.5mm W

SEE FIG. 02-004

1шт.

2-2

PV54D00008F1

IDLER

SEE FIG. 02-005

1шт.

2-3

ZS18C10040

SCREW,Hex, M10 x 40mm

4шт.

2-4

ZW16H10000

WASHER

4шт.
