(05-001) - COUNTERWEIGHT INSTAL (GAIN)

Запчасти Case CX27B (05-001) - COUNTERWEIGHT INSTAL (GAIN) (39) - FRAMES AND BALLASTING

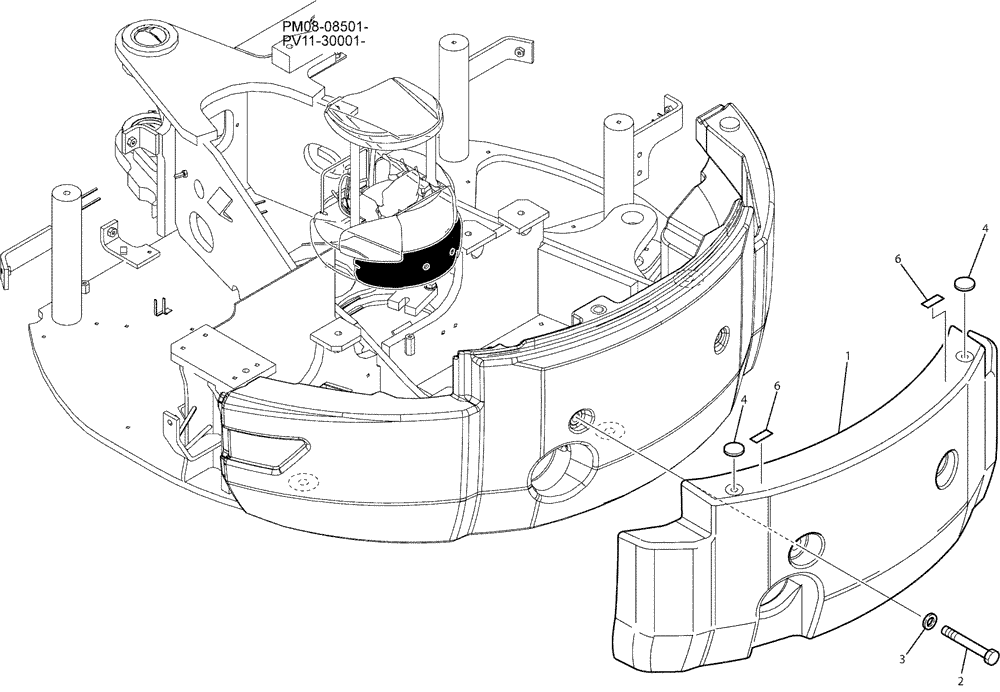

Схема запчастей Case CX27B - (05-001) - COUNTERWEIGHT INSTAL (GAIN) (39) - FRAMES AND BALLASTING
3
4
4
6
6
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PM60C00023F2

COUNTERWEIGHT

INSTAL (GAIN)

1шт.

1

PM60C00022P1

COUNTERWEIGHT

COUNTERWEIGHT

1шт.

2

HS18C20110G1

SCREW

2шт.

3

HY26Y21050G4

WASHER

2шт.

4

LE60C01028P1

PLATE

2шт.

6

YN20T01221P1

DANGER DECAL

2шт.
