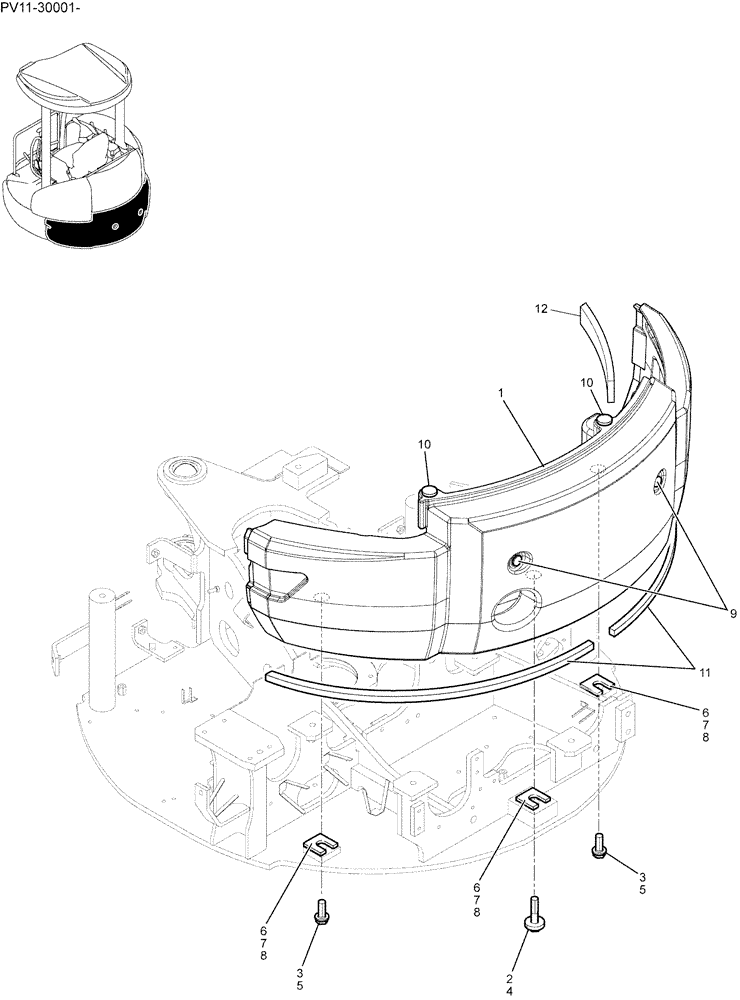

Запчасти Case CX27B (01-003) - COUNTERWEIGHT INSTAL (39) - FRAMES AND BALLASTING

COUNTERWEIGHT INSTAL (PV60C00010F1)

1шт.

1

PV60C00011P1

COUNTERWEIGHT

1шт.

2

ZS18C16075

SCREW,Hex, M16 x 75mm

1шт.

3

ZS18C16045

SCREW,Hex, M16 x 45mm

2шт.

4

PH60C01001P1

WASHER

1шт.

5

ZW16H16000

WASHER

2шт.

6

PM60C01022D1

SHIM

(1.0)

3шт.

7

PM60C01022D2

SHIM,2.0mm Thk

3шт.

8

PM60C01022D3

SHIM

(3.2)

3шт.

9

YT60C01007P1

PLUG

2шт.

10

LE60C01028P1

PLATE

2шт.

11

PV60C01007P1

RUBBER

2шт.

12

PM60C01033P1

FOAM INSULATION

1шт.
