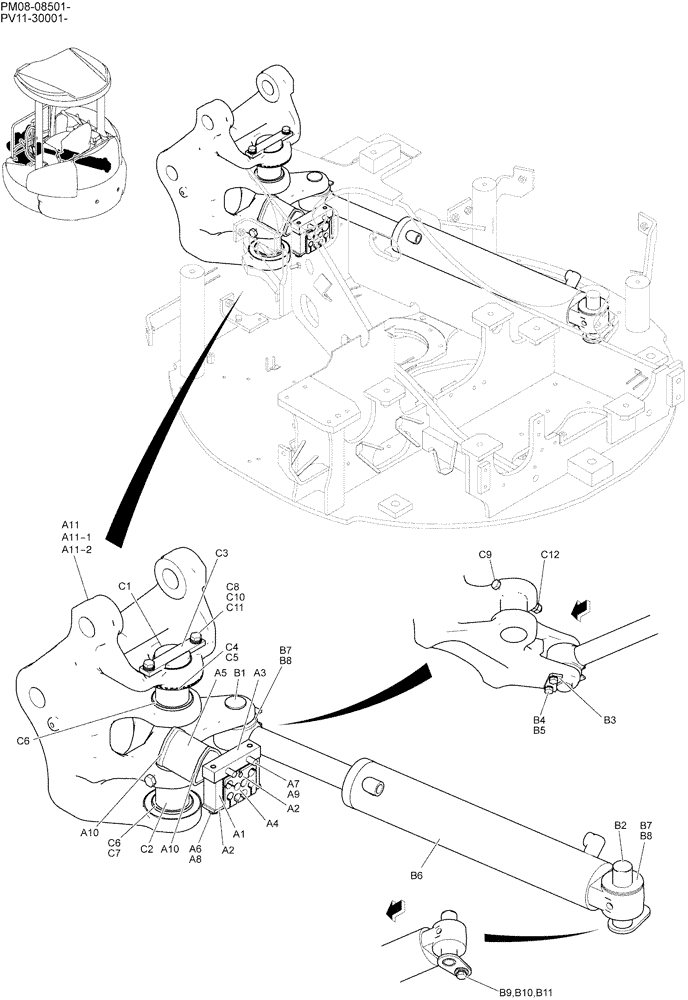

Запчасти Case CX27B (01-002) - BRACKET ASSY, SWING (NIBBLER & BREAKER) (39) - FRAMES AND BALLASTING

BRACKET GROUP, SWING (PV02B00150F1)

1шт.

a1

PX02B01268P1

PLATE

2шт.

a2

PX02B01269P1

PLATE

1шт.

a3

PX02B01270P1

PLATE

PLATE

1шт.

a4

PX02B01266P1

GASKET

RUBBER

1шт.

a5

PX02B01209P1

GROMMET

1шт.

a6

ZS18C10100

SCREW,Hex, M10 x 100mm

2шт.

a7

ZS28C10055

SCREW,Hex Socket Head, M10 x 55mm

2шт.

a8

ZW16H10000

WASHER

WASHER

2шт.

a9

ZW26X10000

LOCK WASHER

2шт.

a10

PY01P01043D8

CABLE TIE,102mm L

2шт.

a11

PM02B00111F1

BRACKET

ASSY, SWING

1шт.

a11-1

PM02B00112P1

BRACKET

SWING

1шт.

a11-2

PM02B01316P2

BUSHING,60mm ID x 70mm OD x 26mm L

BUSHING

1шт.

PM02B00143F1

CYLINDER INSTAL

1шт.

b1

PM02B01325P2

PIN

1шт.

b2

PM02B01389P1

PIN,35mm OD x 124mm L

PIN

1шт.

b3

PM02B01220P1

PLATE

1шт.

b4

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

2шт.

b5

ZW26X10000

LOCK WASHER

2шт.

b6

PM01V00056F2

CYLINDER

CYLINDER, SWING

1шт.

SEE (C.P.M)

1шт.

b7

PR02B01109P1

SHIM,0.5mm Thk

2шт.

b8

PR02B01122D1

SHIM,0.9mm Thk

4шт.

b9

2418T12345

WASHER

1шт.

b10

ZS18C12030

SCREW,Hex, M12 x 30mm

1шт.

b11

ZW26X12000

LOCK WASHER

1шт.

PM02B00120F1

BRACKET INSTAL, SWING

1шт.

c1

PM02B01330P1

PIN,60mm OD x 130mm L

1шт.

c2

PM02B01331P1

PIN,60mm OD x 126mm L

1шт.

c3

PM02B01332P1

PLATE

1шт.

c4

PM02B01246P1

WASHER

1шт.

c5

PM02B01247P1

WASHER

1шт.

c6

2445R138D3

SEAL,60mm ID x 75mm OD x 4mm Thk

DUST

2шт.

c7

PM02B01231P1

SHIM,0.5mm Thk

1шт.

c8

ZS18C10025

SCREW,Hex, M10 x 25mm

2шт.

c9

HS18C12135G1

BOLT

1шт.

c10

ZW26X10000

LOCK WASHER

2шт.

c11

ZW16X10000

WASHER

2шт.

c12

ZN18C12010

NUT

2шт.
