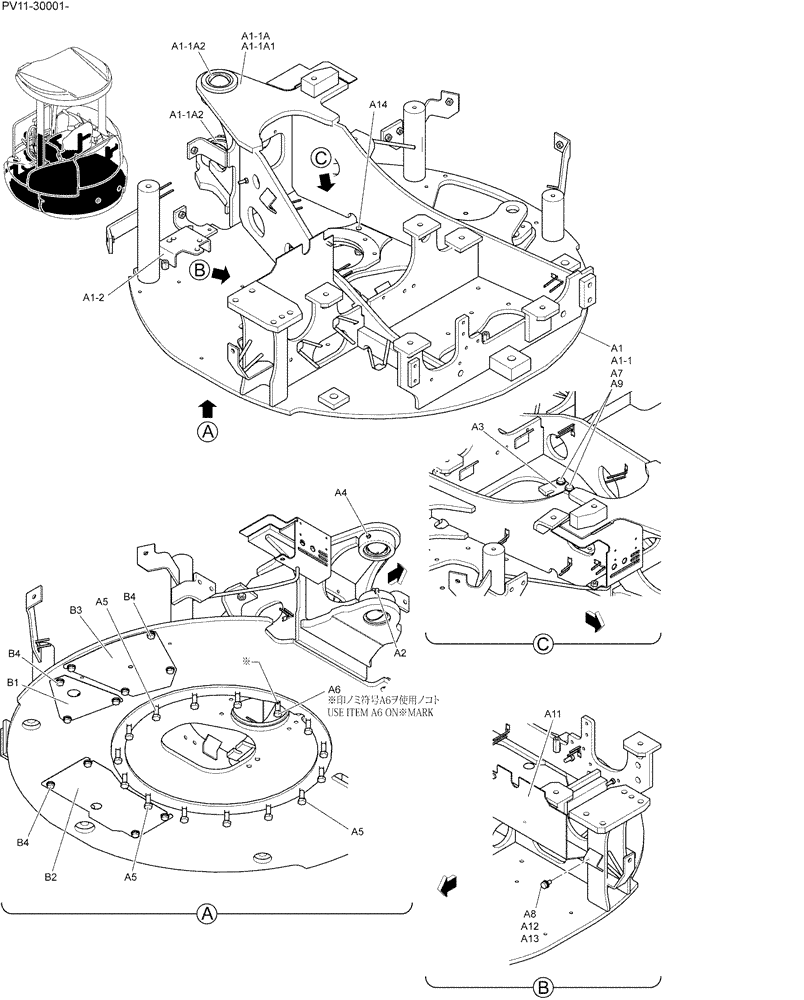

Запчасти Case CX27B (01-001) - FRAME ASSY, UPP (39) - FRAMES AND BALLASTING

a1

PV52F00022P1

FRAME, UPP

1шт.

a1-1

PM52F00035P1

FRAME, UPP

1шт.

a1-1a

PM52F01362F1

BRACKET ASSY

1шт.

a1-1a1

PM52F01363P1

BRACKET

1шт.

a1-1a2

PM52F01256P1

BUSHING,60mm ID x 75mm OD x 53mm L

2шт.

a1-2

PW52F01333P1

PLATE

BRACKET

1шт.

a2

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

GREASE

1шт.

a3

PM52F01202P1

STOP

1шт.

a4

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

A3

1шт.

a5

ZS18C12060

SCREW,Hex, M12 x 60mm

CAP

14шт.

a6

HS58C12070G2

BOLT

CAP

1шт.

a7

ZS18C12030

SCREW,Hex, M12 x 30mm

CAP

2шт.

a8

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

2шт.

a9

ZW16X12000

WASHER

2шт.

a11

PM52F01274P1

PLATE

1шт.

a12

ZW26X10000

LOCK WASHER

2шт.

a13

ZW16X10000

WASHER

2шт.

a14

PV02B01073D3

CAP

2шт.

PM24C00006F1

COVER ASSY, UNDER

1шт.

b1

PM24C01041P1

COVER

COVER

1шт.

b2

PM24C01021P1

COVER

COVER

1шт.

b3

PM24C01020P1

COVER

COVER

1шт.

b4

ZM73C10020

BOLT,M10x20mm - Course Thread

SEMS-BOLT

11шт.
