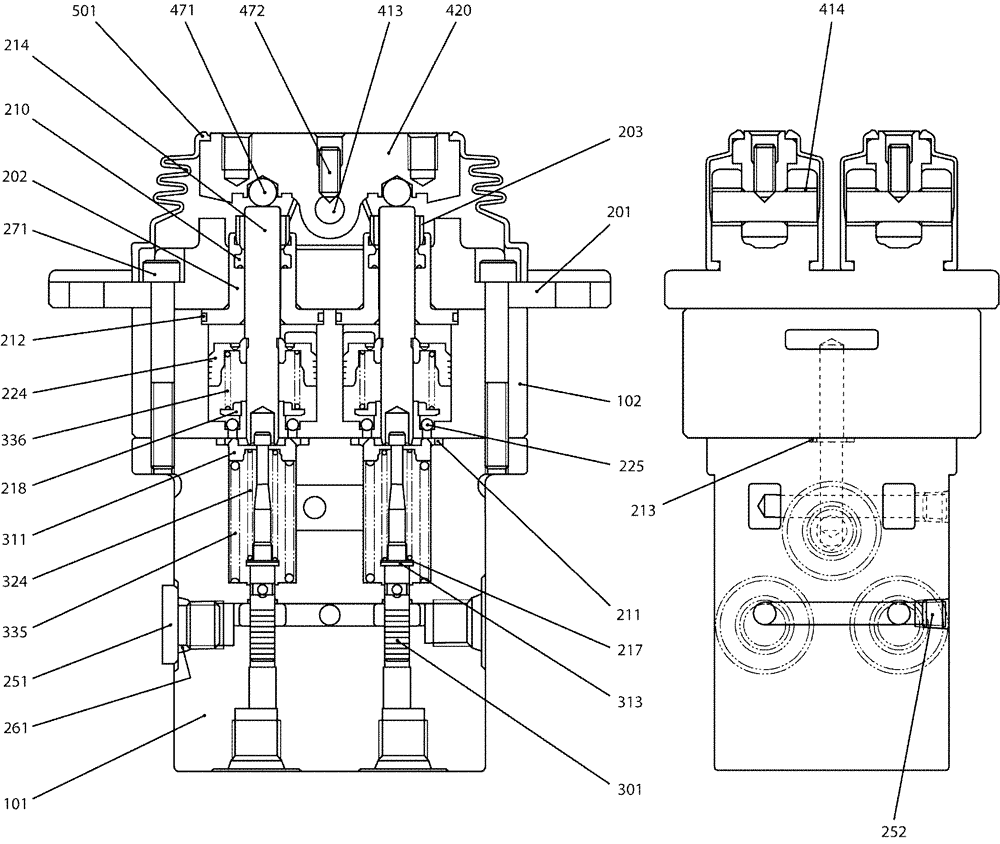

Запчасти Case CX27B (07-038) - VALVE ASSY, PILOT (PROPELLING) P/N PM30V00019F1 (35) - HYDRAULIC SYSTEMS

PM30V00019F4

PILOT VALVE

ASSY, (PROPELLING) Incl 101 - 501

1шт.

101

NSS

NOT SOLD SEPARAT

CASE

1шт.

102

NSS

NOT SOLD SEPARAT

CASE

1шт.

202

PM30V00019S202

PLUG

4шт.

203

PM30V00019S203

CAP

4шт.

210

PM30V00019S210

PACKING

4шт.

211

PM30V00019S211

O-RING

4шт.

212

YT30V00009S212

O-RING

4шт.

213

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

ID 7.8mm x OD 9.7mm

2шт.

218

PM30V00019S218

SPRING SEAT

4шт.

224

NSS

NOT SOLD SEPARAT

PISTON

4шт.

225

2436U625S232

BALL

12шт.

251

YW30V00001S157

PLUG

3шт.

252

2441U722S490

PLUG

1/16" NPTF

2шт.

261

ZD12P01100

O-RING

ID 10.8mm x OD 13.2mm

3шт.

271

PM30V00019S271

CAPSCREW

SCREW

4шт.

301

NSS

NOT SOLD SEPARAT

SPOOL

4шт.

324

PM30V00019S324

SPRING

4шт.

335

PM30V00019S335

SPRING

4шт.

336

PM30V00019S336

SPRING

4шт.

414

EN30V00045S414

BUSHING

BUSHING

4шт.

420

NSS

NOT SOLD SEPARAT

CAM

2шт.

471

NSS

NOT SOLD SEPARAT

BALL

4шт.

501

PM30V00019S501

BOOT

2шт.

PM30V00019R100

REPAIR KIT

BOOT, CONSISTS OF REF. 210(4), 211(4), 212(4), 213(2)

1шт.

PM30V00019R200

REPAIR KIT

BOOT, REPAIR KIT, CONSISTS OF REF. 420(2), 471(4)

1шт.

PM30V00019R300

REPAIR KIT

BOOT, REPAIR KIT, CONSISTS OF REF. 413(1), 420(1), 472(1), 471(2)

1шт.
