/ / / / / / / / (HC019-01[1]) - HYDRAULIC CONTROL VALVE - COMPONENTS

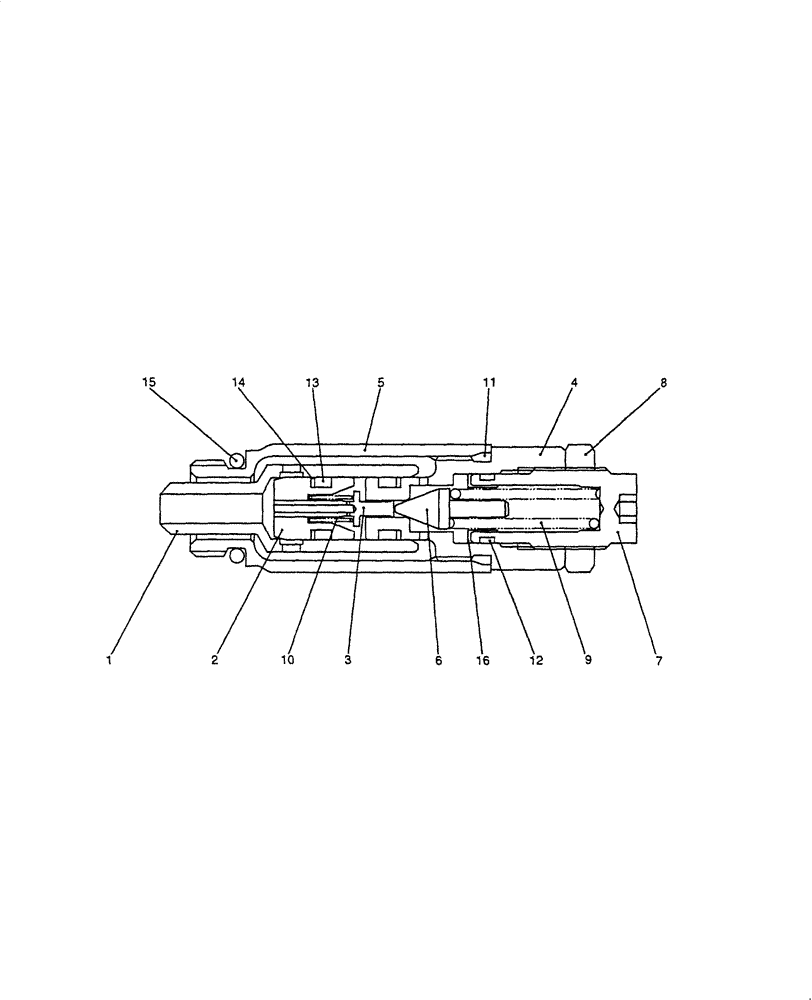

Запчасти Case CX22B (HC019-01[1]) - HYDRAULIC CONTROL VALVE - COMPONENTS (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX22B - (HC019-01[1]) - HYDRAULIC CONTROL VALVE - COMPONENTS (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/1071679.png)
6
13
3
5
7
4
15
16
14
12
11
2
10
8
1
9
1/16
72950897
VALVE
25.5MPa at 5L/min
1шт.
1/16
72275229
HYDRAULIC VALVE
27.5MPa at 5L/min
1шт.
1
NS
NOT SERVICED
1шт.
2
NS
NOT SERVICED
1шт.
3
NS
NOT SERVICED
1шт.
4
NS
NOT SERVICED
1шт.
5
NS
NOT SERVICED
1шт.
6
NS
NOT SERVICED
1шт.
7
NS
NOT SERVICED
1шт.
8
NS
NOT SERVICED
1шт.
9
NS
NOT SERVICED
1шт.
10
NS
NOT SERVICED
1шт.
11
72210077
O-RING
1шт.
12
72215584
O-RING
1шт.
13
72274645
SHIM,0.5mm Thk
2шт.
14
72958056
RING
2шт.
15
72283052
O-RING
1шт.
16
NS
NOT SERVICED
1шт.
