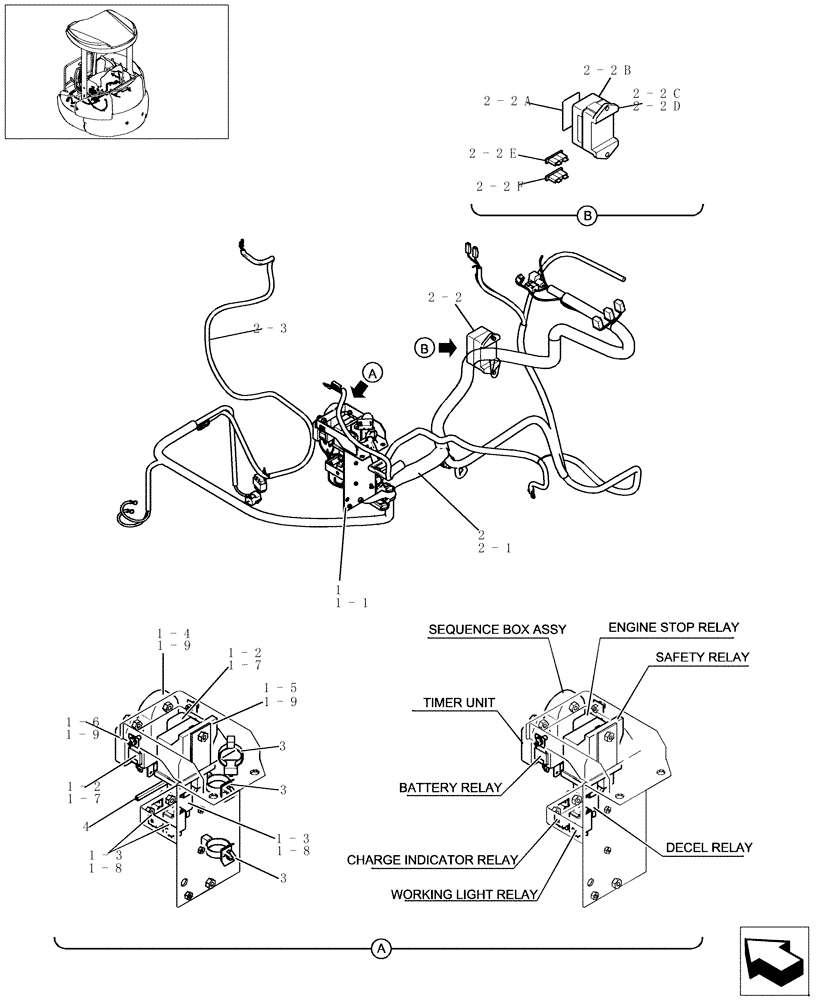

Запчасти Case CX22B (327-01[1]) - ELECTRIC SYSTEM - RELÉ BOX (55) - ELECTRICAL SYSTEMS

-

72285679

RELAY

- ASSY

1шт.

1

72284186

RELAY

1шт.

1-1

72284187

PLATE

1шт.

1-2

72951961

RELAY

(Used for Battery, Engine Stop)

2шт.

1-3

72951951

RELAY

(Used for Deceleration, Charge Indicator, Cab/Canopy Working Light, Horn, Slew/Swing Select, Slew/Swing Preservation, Nibbler Open/Close)

3шт.

1-4

72951952

RELAY

(Used for Sequence Box)

1шт.

1-5

72281260

RELAY

(Used for Safety)

1шт.

1-6

72273635

SWITCH

(Used for Timer - Glow Plug )

1шт.

1-7

72952742

BOLT

2шт.

1-8

72951648

BOLT

3шт.

1-9

72951649

BOLT

2шт.

2

72282269

HARNESS

1шт.

2-1

NS

NOT SERVICED

1шт.

2-2

72281124

FUSE HOLDER

1шт.

2-2a

72281125

LABEL

1шт.

2-2b

72957489

COVER

1шт.

2-2c

72957488

BASE

1шт.

2-2d

72957490

BLOCK

1шт.

2-2e

72951940

FUSE,10 Amp

2шт.

2-2f

72952002

FUSE,30 Amp

7шт.

2-3

72281126

HARNESS

1шт.

3

72203537

CABLE TIE,203mm L

3шт.

4

72281127

BUSHING

1шт.
