(1.300[15]) - GUARDS - COVER ASSY UNDER

Запчасти Case CX22B (1.300[15]) - GUARDS - COVER ASSY UNDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

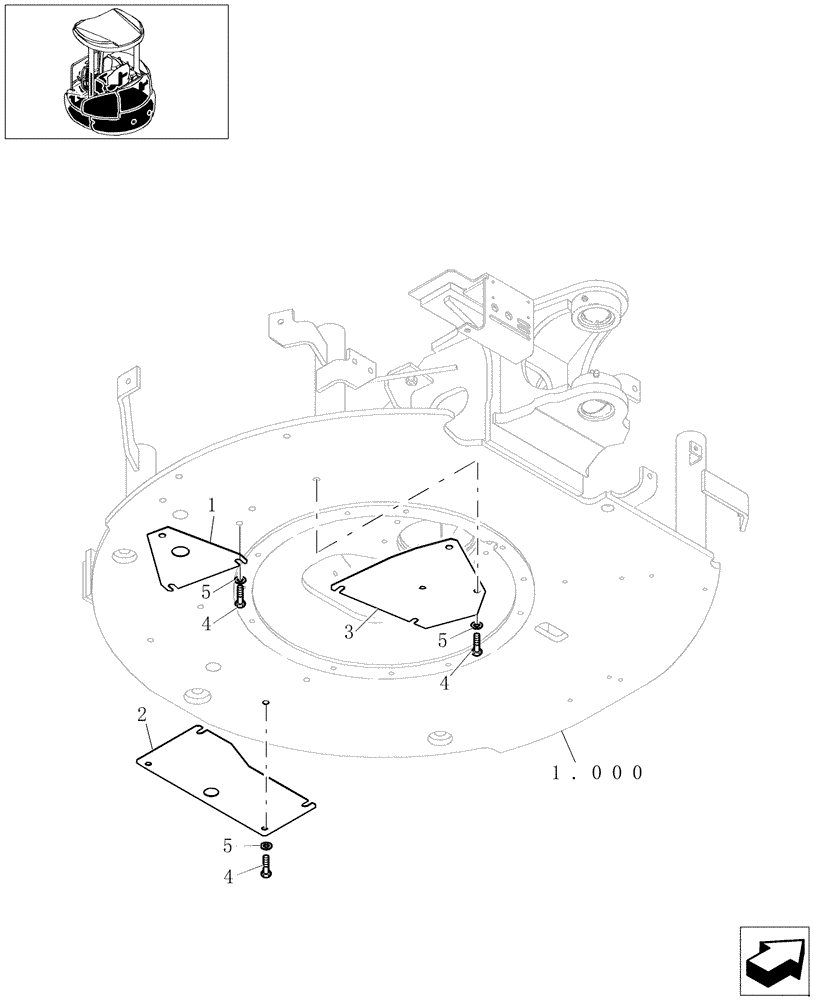

Схема запчастей Case CX22B - (1.300[15]) - GUARDS - COVER ASSY UNDER (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
4
1
5
2
5
5
4
1.000
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87571532

COVER

1шт.

2

87618335

COVER

1шт.

3

87618339

COVER

1шт.

4

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

11шт.

5

12626221

WASHER,10mm ID x 25mm OD x 3mm Thk

11шт.
