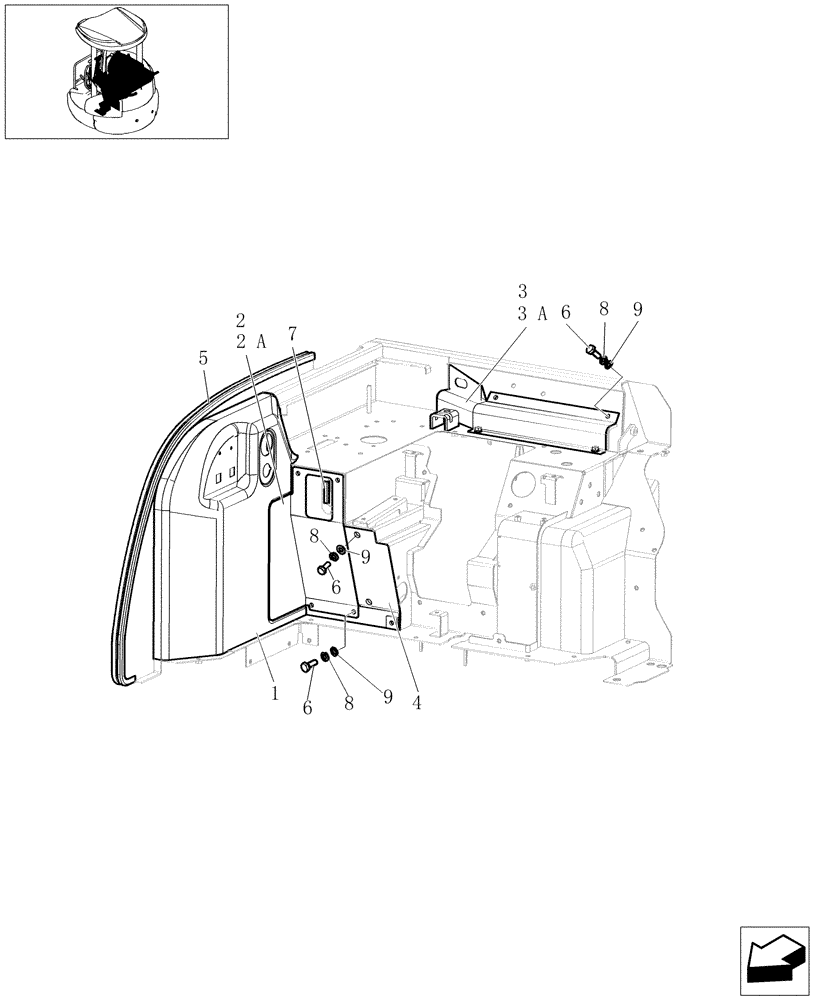

Запчасти Case CX22B (1.070[05]) - CONTROL OPERATORS - STAND ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87546488

STAND

1шт.

See Page 1.070 06

1шт.

2

87546526

COVER ASSY

1шт.

2a

72281664

INSULATOR

1шт.

3

87546537

COVER ASSY

1шт.

3a

72285657

RUBBER WEATHERSTRIP

1шт.

4

87546558

COVER

1шт.

5

72285443

RUBBER WEATHERSTRIP

1шт.

6

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

10шт.

7

72281280

SET OF PARTS

1шт.

8

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

10шт.

9

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

10шт.
