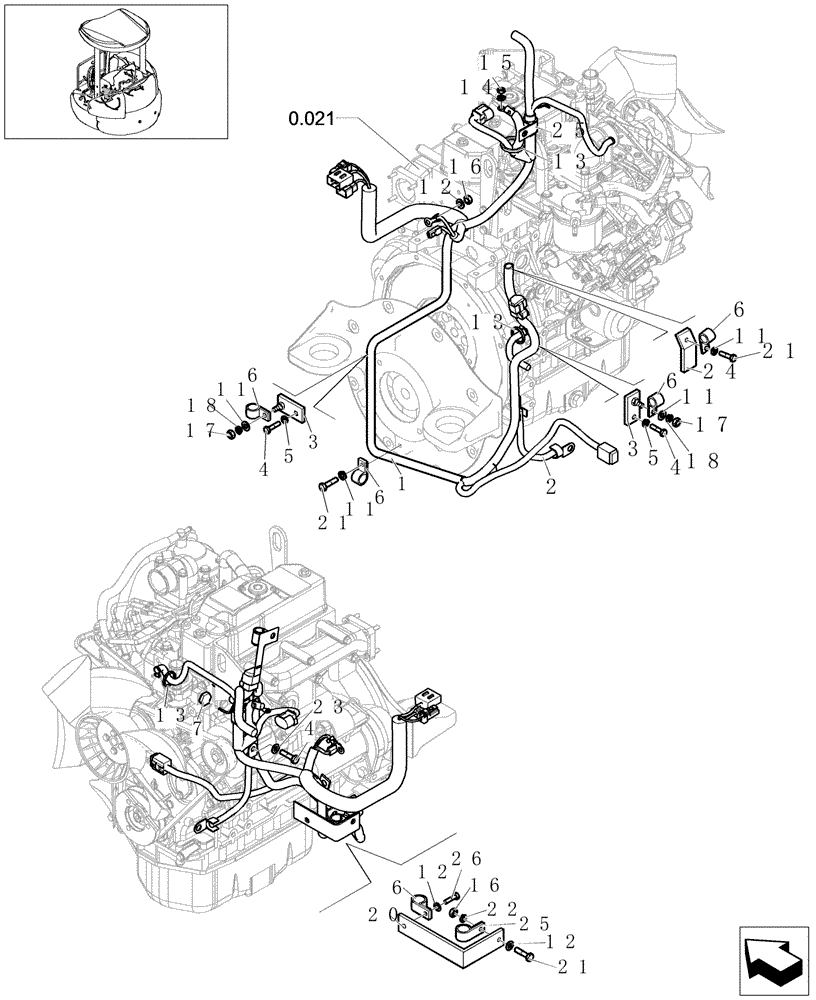

Запчасти Case CX22B (1.220[07]) - ELECTRIC SYSTEM - ENGINE HARNESS (55) - ELECTRICAL SYSTEMS

1

72285780

HARNESS

1шт.

2

72282263

CABLE

1шт.

3

87540489

PLATE

2шт.

4

11112134

SCREW

TE M12x20

3шт.

5

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

6

71405773

CLAMP

5шт.

7

72273958

SENSOR

1шт.

11

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

12

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

13

14560287

CABLE TIE,207.00mm L

COLLAR

3шт.

14

13550221

WASHER

Ø6

1шт.

15

15896224

NUT,Hex, M6

M6

1шт.

16

16100824

NUT,M8, Cl 10

2шт.

17

11701724

NUT

M10

2шт.

18

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

20

72281117

PLATE

1шт.

21

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

22

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

23

13550521

WASHER,12.2mm ID x 24mm OD x 3mm Thk

Ø12

1шт.

24

72282265

CLIP

1шт.

25

71405745

CLAMP,18mm ID, 12.5mm Bolt Hole, P Type

2шт.

26

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.
