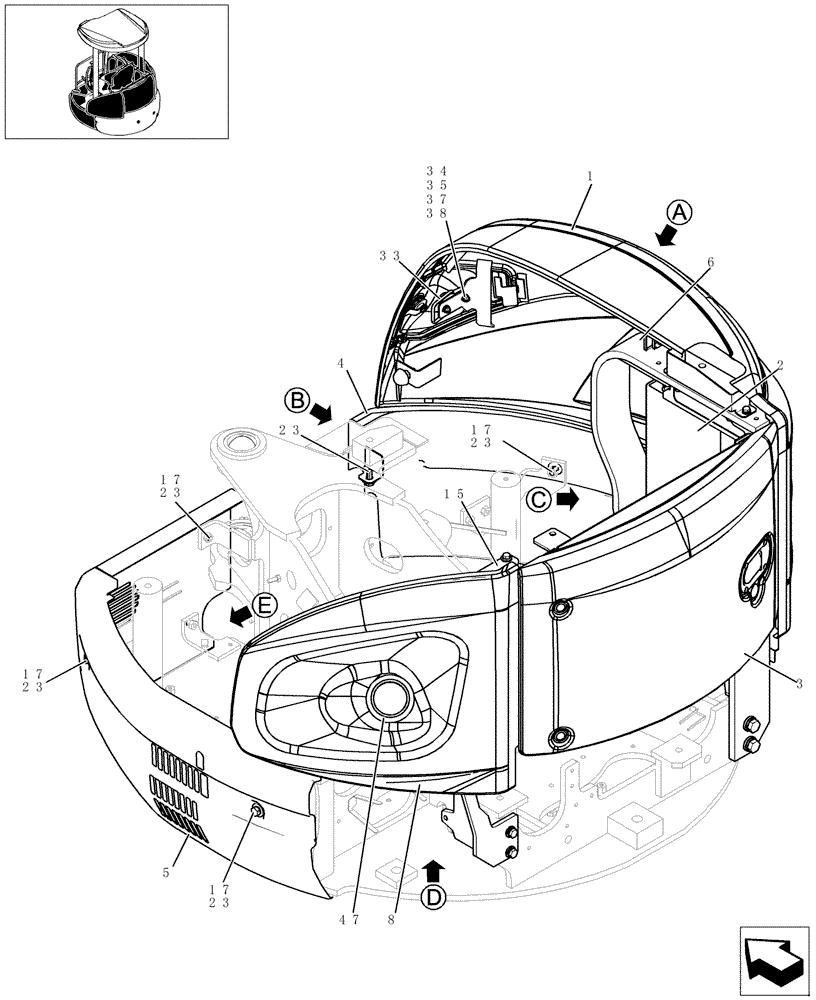

Запчасти Case CX20B (240-01[1]) - HOODS (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

-

72282108

SET OF PARTS

- ASSY

1шт.

1

72282109

COVER ASSY

- ASSY SEE 240-01-2

1шт.

2

72282110

DUCT

- ASSY SEE 240-01-4

1шт.

3

72282111

COWLING

- ASSY SEE 240-01-3

1шт.

4

72282112

COVER ASSY

- ASSY SEE 240-01-2

1шт.

5

72282113

COVER ASSY

- ASSY SEE 240-01-3

1шт.

6

72282114

SUPPORT

- ASSY SEE 240-01-4

1шт.

8

72282115

COVER ASSY

- ASSY SEE 240-01-3

1шт.

15

72282116

PLATE

1шт.

17

72954065

WASHER

5шт.

UP TO S/N PM07-07185

1шт.

FROM S/N PM07-07001

1шт.

17

72151900

WASHER

5шт.

FROM S/N PM07-07186

1шт.

23

72280941

BOLT

6шт.

33

72281007

LOCK

1шт.

34

72954879

SCREW,Hex, M6 x 20mm

2шт.

35

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

2шт.

37

72951740

WASHER

4шт.

38

72951655

NUT

2шт.

47

72280944

GROMMET

1шт.
