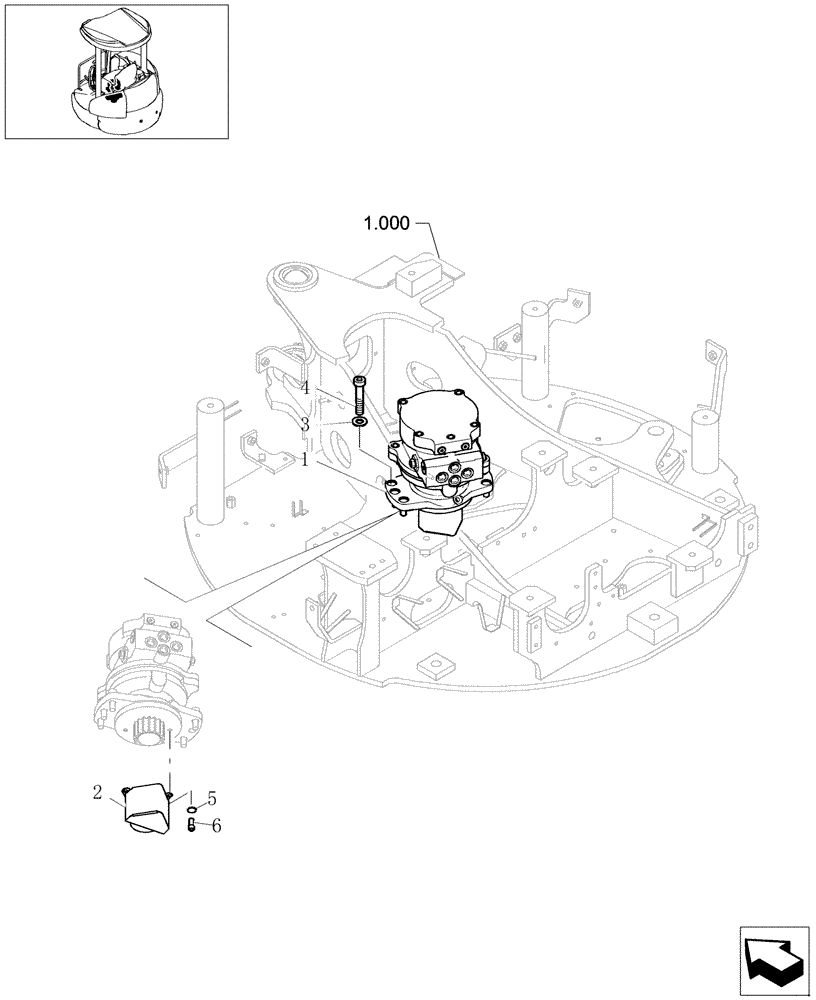

Запчасти Case CX20B (1.040[01]) - SLEW HYDRAULIC MOTOR (35) - HYDRAULIC SYSTEMS

1

72281553

HYDRAULIC MOTOR

1шт.

See Page 1.040A

1шт.

2

87365796

COVER

1шт.

3

13507534

WASHER,12.2mm ID x 21mm OD x 2.5mm Thk

Ø12

5шт.

4

14422274

SCREW,M12 x 40mm

TCE M12x40

5шт.

5

10571579

LOCK WASHER,M6

2шт.

6

14305074

SCREW,M6 x 10mm

TCE M6x10

2шт.
