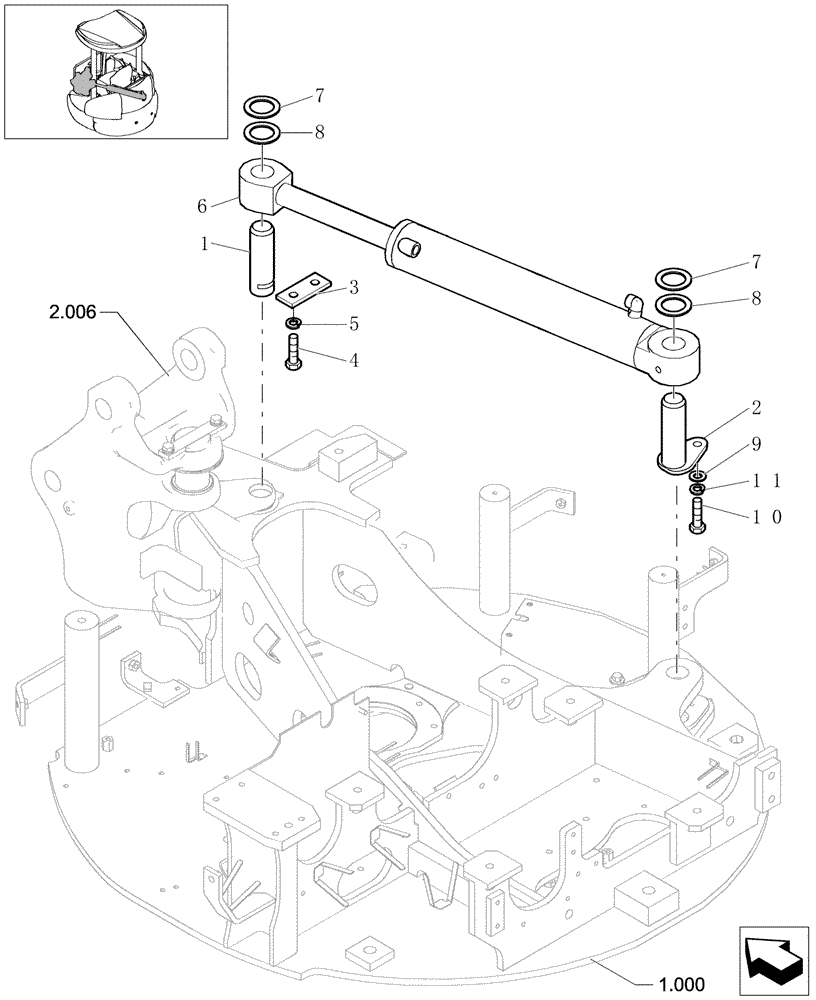

Запчасти Case CX20B (1.035[01]) - CYLINDER SWING INSTAL (35) - HYDRAULIC SYSTEMS

1

72282303

PIN

1шт.

Up To S/N N7GN01560

1шт.

1

87361036

PIN

1шт.

From S/N N7GN01561

1шт.

2

72282499

PIN

1шт.

Up To S/N N7GN06773

1шт.

2

87601322

PIN

1шт.

From S/N N7GN06774

1шт.

3

72271886

PLATE

1шт.

4

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

2шт.

5

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

6

72285830

HYDRAULIC CYLINDER

1шт.

See page 1.035A

1шт.

7

72952545

SHIM,37mm ID x 60mm OD x 0.5mm Thk

2шт.

8

72952546

SHIM,37mm ID x 60mm OD x 0.9mm Thk

4шт.

9

72950359

WASHER

1шт.

10

11112434

BOLT,Hex, M12 x 30mm, Cl 10.9, Full Thd

1шт.

11

10571979

LOCK WASHER,M12

1шт.
