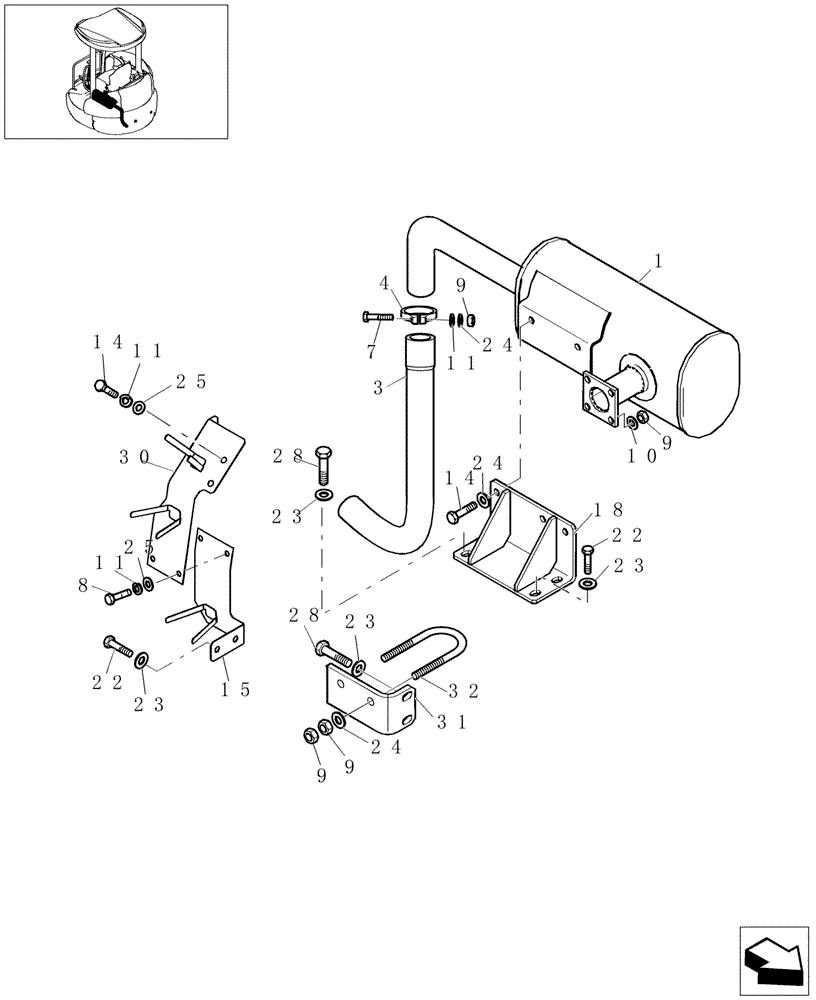

Запчасти Case CX20B (0.002[01]) - MUFFLER (10) - ENGINE

1

72285612

MUFFLER

1шт.

3

72281477

PIPE

1шт.

4

87540154

CLAMP

1шт.

7

16044434

SCREW,M8 x 60mm, Cl 10.9

TE M8x60

1шт.

8

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

9

16100824

NUT,M8, Cl 10

9шт.

10

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

11

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

5шт.

14

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

15

72281478

COVER

1шт.

18

87540164

BRACKET

1шт.

22

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

4шт.

23

12626221

WASHER,10mm ID x 25mm OD x 3mm Thk

Ø10

8шт.

24

12654421

WASHER,8.15mm ID x 17mm OD x 3mm Thk

Ø8

8шт.

25

72209113

WASHER

4шт.

28

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

4шт.

30

72281480

COVER

1шт.

31

72281481

PLATE

1шт.

32

72281482

U-BOLT

1шт.
