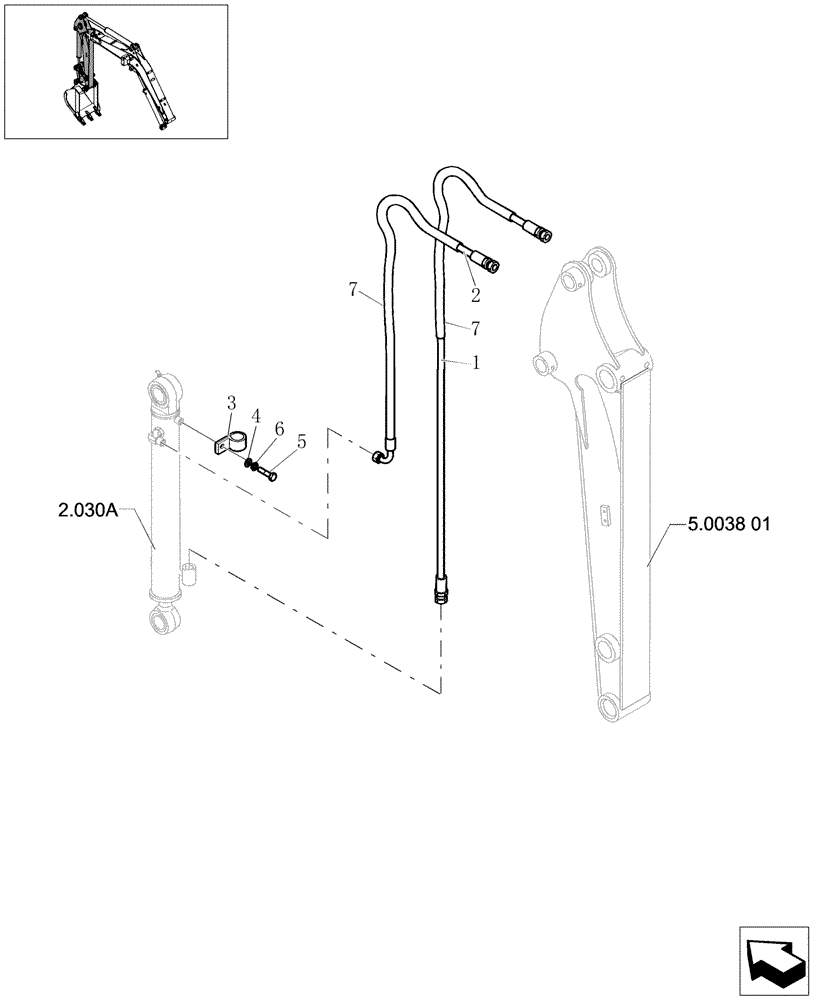

Запчасти Case CX20B (5.0038[02A]) - LONG ARM LINES - 747329070 (84) - BOOMS, DIPPERS & BUCKETS

1

72951784

HOSE,9.5mm ID x 1420mm L

1шт.

2

87619200

HOSE,9.5mm ID x 1050mm L

1шт.

3

71405773

CLAMP

1шт.

4

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

5

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

1шт.

6

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

7

87619206

GUARD

1шт.
