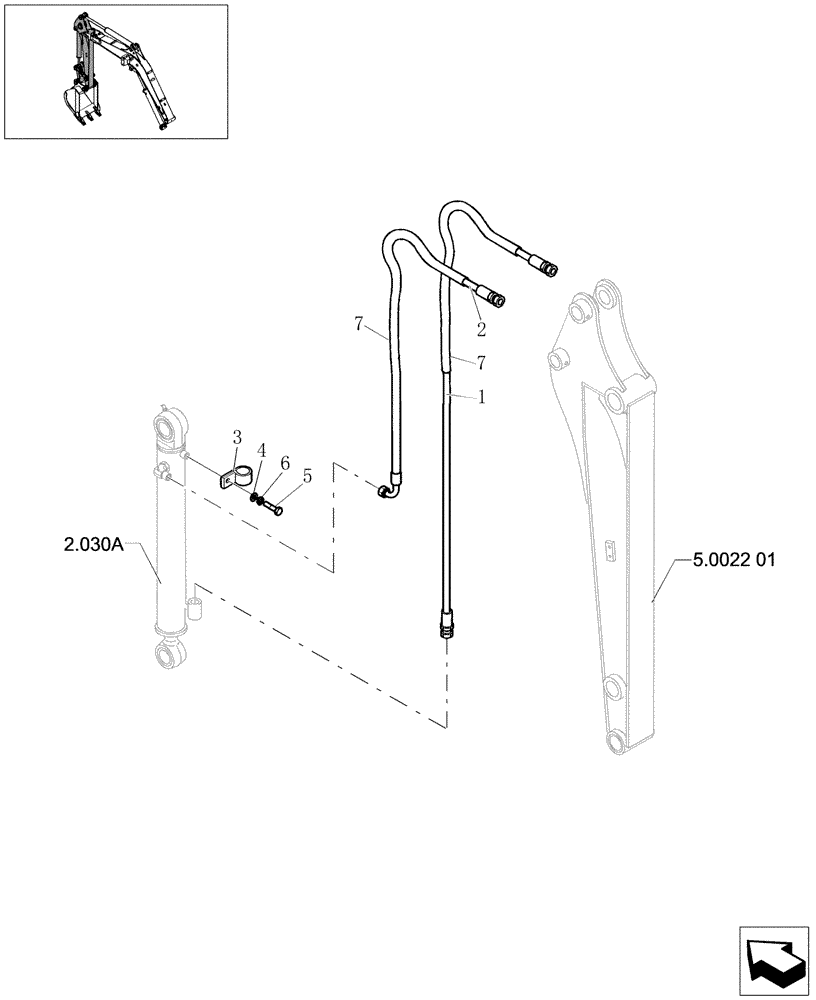

Запчасти Case CX20B (5.0022[02A]) - ARM LINES - STD - 747324070 (84) - BOOMS, DIPPERS & BUCKETS

1

87376337

FLEXIBLE HOSE,9.5mm ID x 1150mm L

1шт.

2

87619226

HOSE,9.5mm ID x 790mm L

1шт.

3

71405773

CLAMP

1шт.

4

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

5

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

1шт.

6

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

7

72285101

HOSE

2шт.
