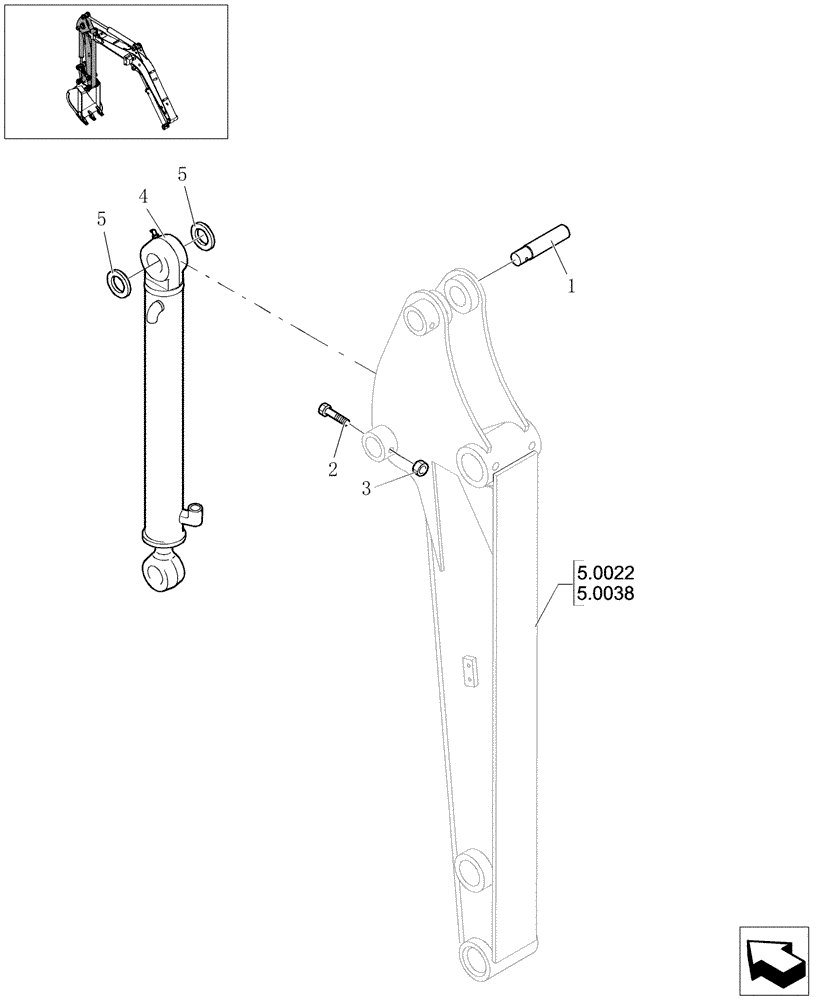

Запчасти Case CX20B (2.030[01]) - BUCKET CYLINDER ASSEMBLY (84) - BOOMS, DIPPERS & BUCKETS

1

72283170

PIN

1шт.

2

11107734

SCREW

TE M10x75

1шт.

3

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

4

72285833

HYDRAULIC CYLINDER

1шт.

See Page 2.030A

1шт.

Up to S/N N7GN06769

1шт.

4

87618915

HYDRAULIC CYLINDER

1шт.

From S/N N7GN06770

1шт.

See Page 2.030A

1шт.

5

72952545

SHIM,37mm ID x 60mm OD x 0.5mm Thk

2шт.
