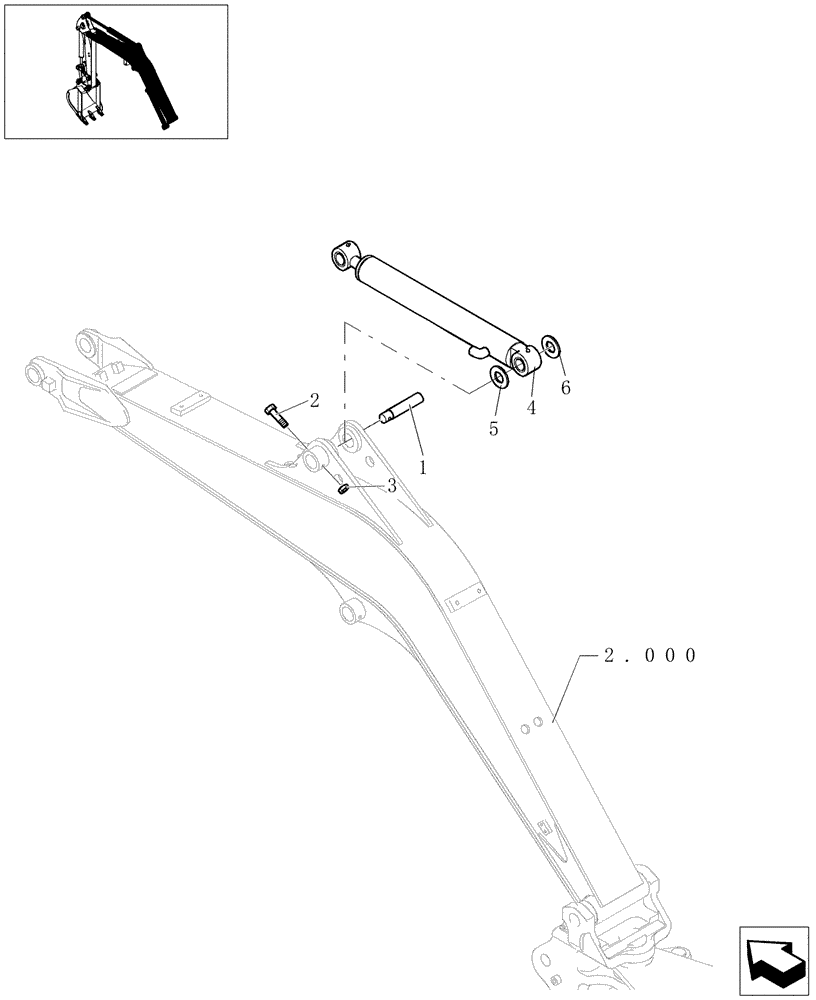

Запчасти Case CX20B (2.020[01]) - ARM CYLINDER ASSEMBLY (84) - BOOMS, DIPPERS & BUCKETS

1

72283170

PIN

1шт.

2

11107734

SCREW

TE M10x75

1шт.

3

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

4

72286163

CYLINDER

1шт.

See Page 2.020A

1шт.

Up To S/N N7GN06953

1шт.

4

87616278

CYLINDER

1шт.

See Page 2.020A

1шт.

From S/N N7GN06954

1шт.

5

72952545

SHIM,37mm ID x 60mm OD x 0.5mm Thk

1шт.

6

72952546

SHIM,37mm ID x 60mm OD x 0.9mm Thk

1шт.
