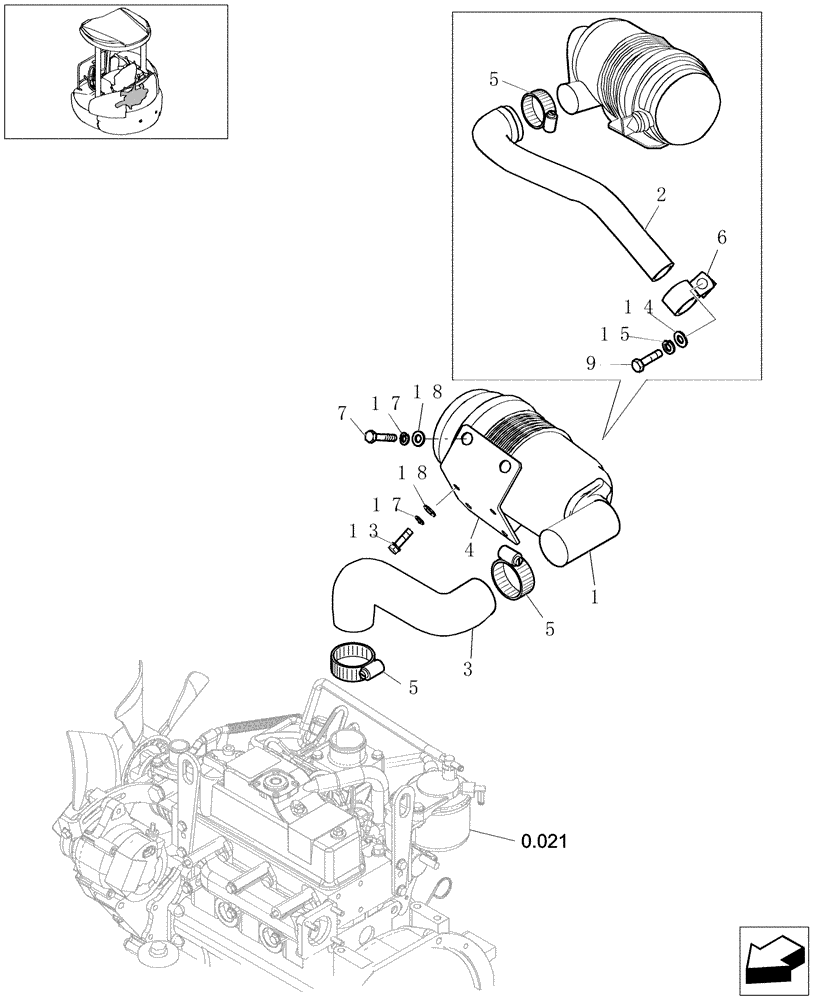

Запчасти Case CX20B (0.001[01]) - AIR CLEANER (10) - ENGINE

1

87617411

AIR CLEANER

1шт.

See Page 0.001A

1шт.

2

72281472

HOSE,34.00 mm ID, 49.00 mm ID x 352.00 mm

1шт.

3

72281473

HOSE,49.00 mm ID x 207.00 mm

1шт.

4

87544527

BRACKET

1шт.

5

87526525

CLAMP

3шт.

6

71438664

CLAMP,45mm ID, 12.5mm Bolt Hole, P Type

1шт.

7

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

9

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

1шт.

Up To S/N XXZ

1шт.

9

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

From S/N XXZ

1шт.

13

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

4шт.

14

12626221

WASHER,10mm ID x 25mm OD x 3mm Thk

Ø10

1шт.

Up To S/N XXZ

1шт.

14

12647021

WASHER,8.15mm ID x 25mm OD x 2.5mm Thk

1шт.

From S/N XXZ

1шт.

15

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

Up To S/N XXZ

1шт.

15

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

From S/N XXZ

1шт.

17

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

18

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.
