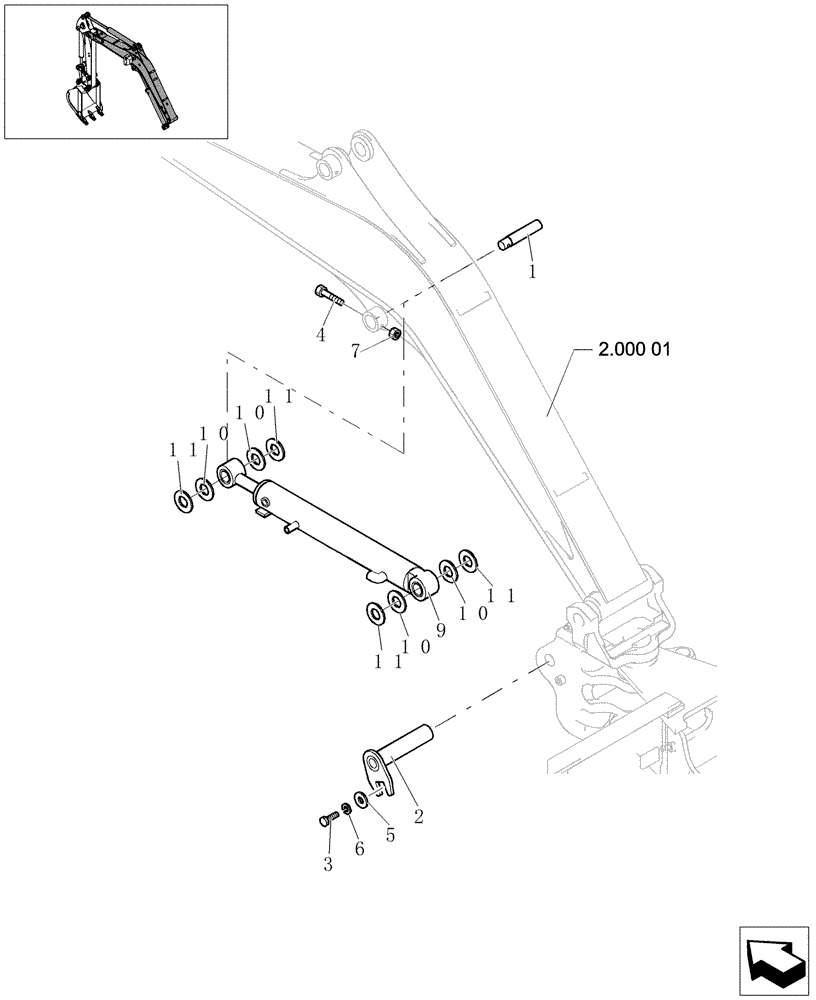

Запчасти Case CX20B (2.010[02]) - BOOM CYLINDER ASSEMBLY (CANOPY) (84) - BOOMS, DIPPERS & BUCKETS

1

72283159

PIN

1шт.

2

72283162

PIN

1шт.

3

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

1шт.

4

11107834

SCREW

TE M10x80

1шт.

5

72950364

WASHER

Ø10

1шт.

6

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

7

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

9

72285839

CYLINDER

1шт.

See Page 2.010B

1шт.

Up To S/N N7GN07707

1шт.

9

87601584

CYLINDER

1шт.

See Page 2.010B

1шт.

From S/N N7GN07708

1шт.

10

72281403

SHIM,42mm ID x 65mm OD x 0.90mm Thk

2шт.

11

72950988

SHIM

3шт.
