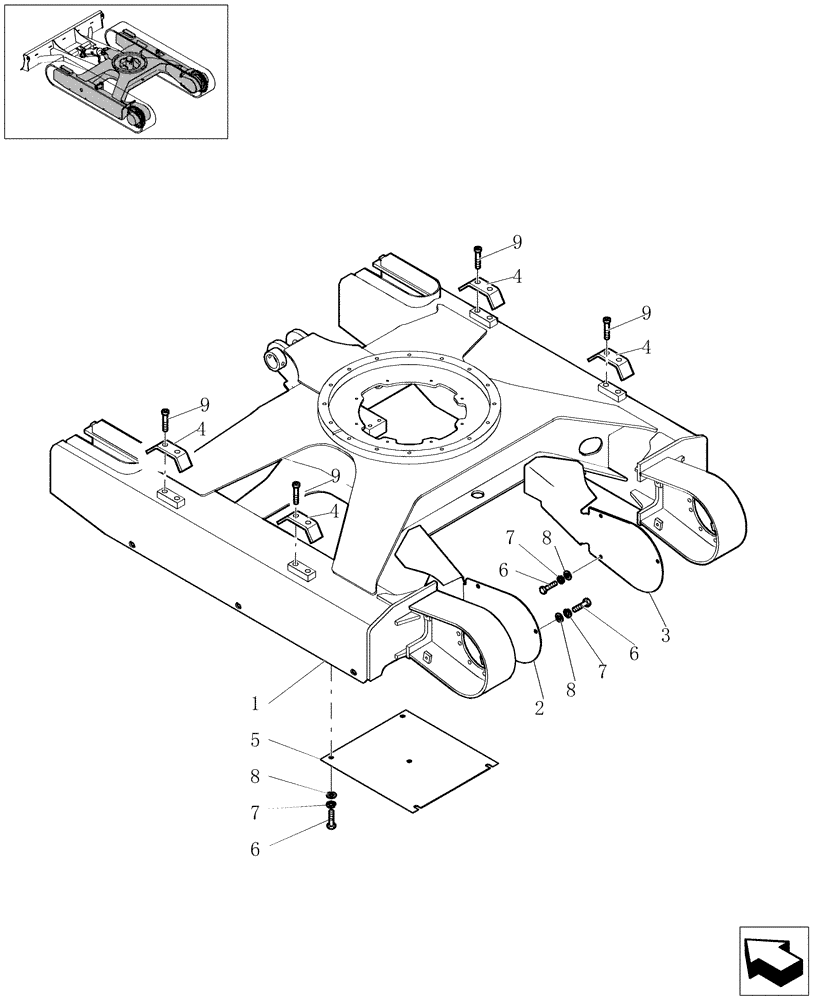

Запчасти Case CX20B (3.000[01]) - LOWER FRAME (39) - FRAMES AND BALLASTING

1

72171054

FRAME

1шт.

2

72171083

COVER

LH

1шт.

3

72171084

COVER

RH

1шт.

4

72171085

PLATE

4шт.

5

72170386

COVER

1шт.

6

10979234

BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd

10шт.

7

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

10шт.

8

12626221

WASHER,10mm ID x 25mm OD x 3mm Thk

Ø10

10шт.

9

14420174

SCREW,M10 x 25mm, Cl 12.9

TCE M10x25

8шт.
