(01-037[01]) - CONTROL LINES, REMOTE - MULTI

Запчасти Case CX17B (01-037[01]) - CONTROL LINES, REMOTE - MULTI (35) - HYDRAULIC SYSTEMS

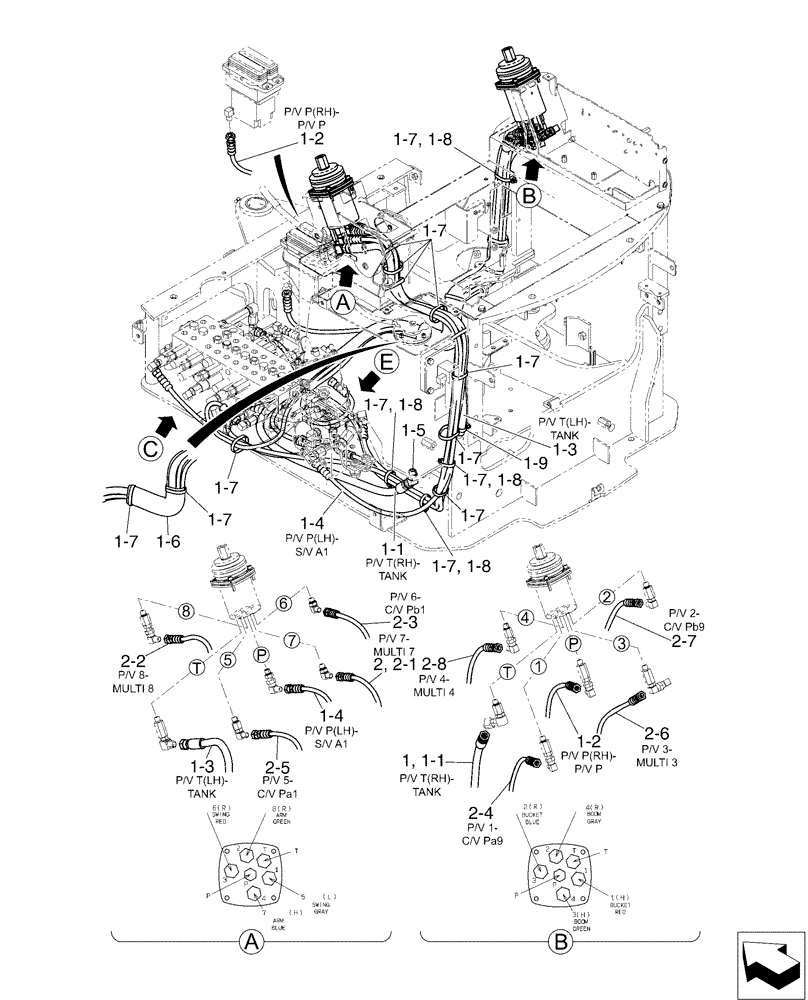

Схема запчастей Case CX17B - (01-037[01]) - CONTROL LINES, REMOTE - MULTI (35) - HYDRAULIC SYSTEMS
1-7
1-3
1-7
1-7
2-4
1-7
2-1
1-7
1-9
1-5
1-8
1-3
1-7
1-2
2
1-4
1-1
2-3
1-7
1-7
1
2-5
2-7
1-6
1-7
1-7
1-7
1-8
2-6
1-4
1-2
1-8
2-2
1-8
2-8
1-1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU68H00039F1

Control Lines, Remote (Multi)

1шт.

1

PU68H00035F1

Control Lines, Remote

1шт.

1-1

HX22L06200DY

HOSE

1шт.

1-2

HX23L04125DX

HOSE

1шт.

1-3

PW68H01023DB

HOSE,9.5mm ID x 760mm L

1шт.

1-4

HX23L04135DX

HOSE

1шт.

1-5

HH45S06006G1

45 ELBOW

1шт.

1-6

YN68H01106P1

COVER

1шт.

1-7

PY01P01043D8

CABLE TIE,102mm L

16шт.

1-8

YN13E01375P1

CLIP,M8 x 8.20mm Shank

4шт.

1-9

ZC16X01800

CLIP

1шт.

2

PU68H00034F1

Control Lines, Remote

1шт.

2-1

PU68H01041D2

HOSE

1шт.

2-2

PU68H01042D3

HOSE

1шт.

2-3

PU68H01044D1

HOSE

1шт.

2-4

PU68H01045D1

HOSE

1шт.

2-5

PU68H01047D4

HOSE

1шт.

2-6

PU68H01059D3

HOSE

1шт.

2-7

PU68H01061D2

HOSE

1шт.

2-8

PU68H01061D4

HOSE

1шт.
