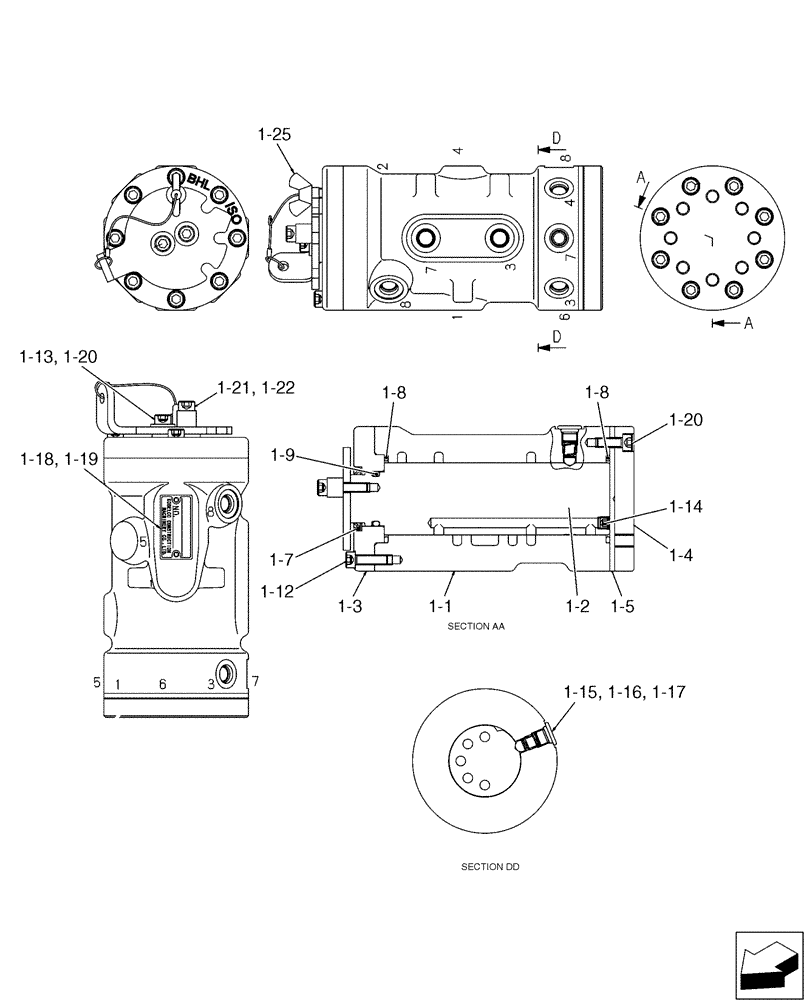

Запчасти Case CX17B (01-027[03]) - VALVE INSTAL - MULTI (35) - HYDRAULIC SYSTEMS

PU64H00025F1

Valve Instal (Multi)

1шт.

1

PX30V00060F3

CONTROL VALVE

1шт.

1-1

PX30V01037P1

HOUSING

1шт.

1-2

PX30V01036P1

SPOOL

1шт.

1-3

PX30V01041P1

COVER

1шт.

1-4

PX30V01018P1

COVER

1шт.

1-5

PX30V01022P1

SPACER

Cover

1шт.

1-7

YN30V01012P1

SEAL

Dust

1шт.

1-8

ZD12G05000

O-RING,49.40mm ID x 55.60mm OD x 3.10mm

2шт.

1-9

ZD11P02800

O-RING

1шт.

1-12

ZS28C06020

SCREW,Hex Socket Head, M6 x 20mm

2шт.

1-13

ZW16P06000

WASHER

1шт.

1-14

PX30V01029P1

PLUG

5шт.

1-15

YN30V01027P1

PLUG

1шт.

1-16

YN30V01015P1

BALL

1шт.

1-17

YN30V01028P1

SPRING

1шт.

1-18

YN22T00264P1

Name Plate

1шт.

1-19

2420Z1036D3

CLEVIS

2шт.

1-20

ZS28C06016

SCREW,Hex Socket Head, M6 x 16mm

15шт.

1-21

PX30V01032P1

SPACER

1шт.

1-22

ZS28C06025

SCREW,Hex Socket Head, M6 x 25mm

Cap

1шт.

1-25

PX30V01059P1

LEVER

1шт.
