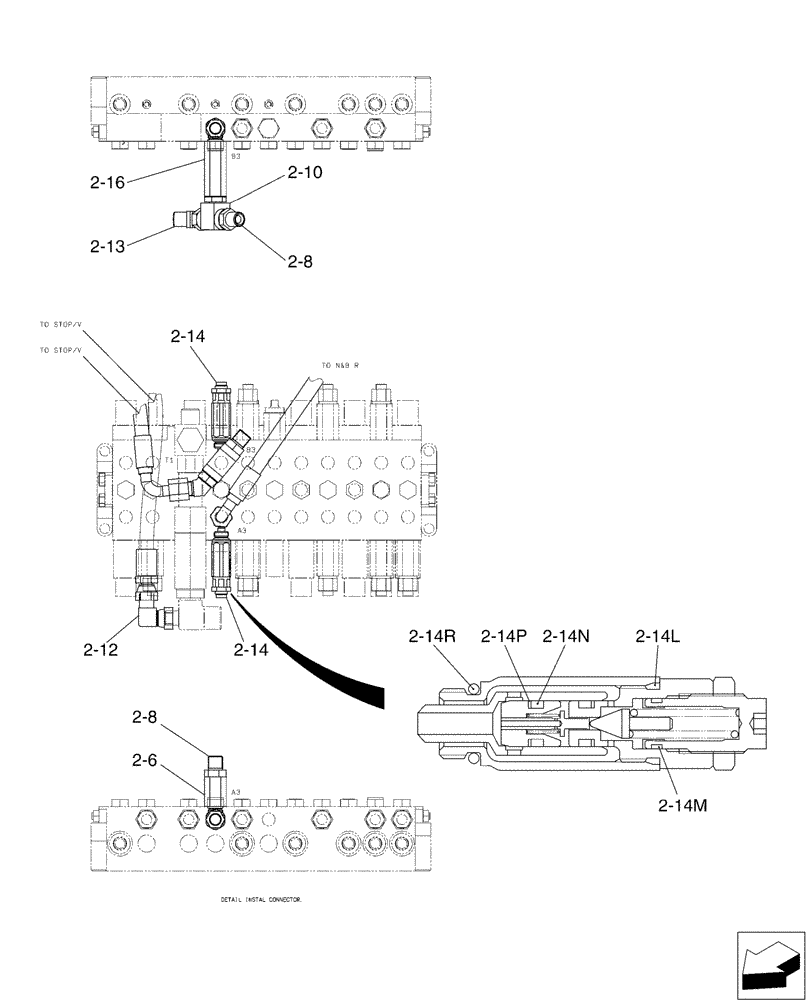

Запчасти Case CX17B (01-022[05]) - HYD LINES, UPP - NIBBLER AND BREAKER (35) - HYDRAULIC SYSTEMS

PU03H00023F1

Hyd. Lines, Upp (Nibbler & Breaker)

1шт.

2

PU03H00024F1

Hyd. Lines, Upp.

1шт.

2-1

PF25V00001F2

VALVE

Stop

1шт.

2-2

HX35L06038DX

HOSE

1шт.

2-3

HX35L06032DX

HOSE

1шт.

2-4

PU03H01160D1

HOSE

1шт.

2-5

PU03H01163D1

HOSE

1шт.

2-6

HH25R06006GD

WIRE CONNECTOR

1шт.

2-7

HH35S06008G1

ELBOW

2шт.

2-8

HH25S06006G1

HYD CONNECTOR

2шт.

2-9

2444Z3715

90 ELBOW

1шт.

2-10

YN64H01048P1

TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring

1шт.

2-11

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

2шт.

2-12

PR03H01056P1

ELBOW

1шт.

2-13

HH45S06006G1

45 ELBOW

1шт.

2-14

PM22V00005FF

VALVE

2шт.

2-14l

ZD12P01500

O-RING

1шт.

2-14m

2436R612S13

O-RING

1шт.

2-14n

PH22V00003S013

O-RING

2шт.

2-14p

PH22V00003S014

BACK-UP RING

2шт.

2-14r

ZD12P01400

O-RING

1шт.

2-15

PU03H01147P1

BLOCK

Tapped

1шт.

2-16

HH25R06006G2

HYD CONNECTOR

1шт.
