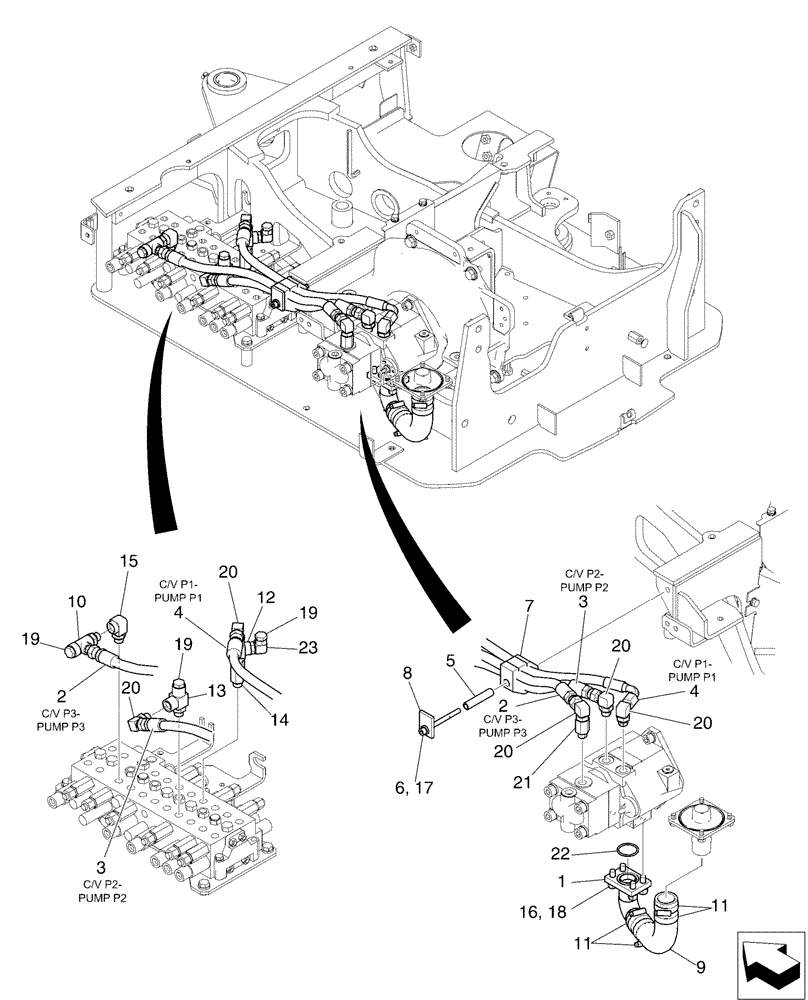

Запчасти Case CX17B (01-021) - HYD LINES, PUMP (35) - HYDRAULIC SYSTEMS

PU30H00014F1

Hyd. Lines, Pump

1шт.

1

PU30H01041P1

TUBE

1шт.

2

HX25L06058DY

HOSE

1шт.

3

HX25L06044DY

HOSE ASSY.

1шт.

4

HX35L06050DY

HOSE

1шт.

5

ZY26X04065

SPACER

1шт.

6

HS28C08090G1

SCREW

Cap

1шт.

7

PU30H01035P1

RUBBER SLEEVE

1шт.

8

PU30H01032P1

SUPPORT

1шт.

9

PU30H01040P1

HOSE

1шт.

10

PU64H01003P1

ELBOW

1шт.

11

ZC16X04200

CLAMP

Clip

4шт.

12

PH03H01066P1

TEE

1шт.

13

PW64H01011P1

TEE

1шт.

14

2444Z3711

HYD CONNECTOR

1шт.

15

YT42H01128P1

90 ELBOW

1шт.

16

ZW26K10000

LOCK WASHER

Lock

4шт.

17

ZW16H08000

WASHER

1шт.

18

ZS28C10025

SCREW,Hex Socket Head, M10 x 25mm

4шт.

19

ZE72X04000

PLUG

3шт.

20

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

5шт.

21

HH25R06006G1

HYD CONNECTOR

1шт.

22

ZD12P03400

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

23

2444Z2894

90 ELBOW

Elbow

1шт.
