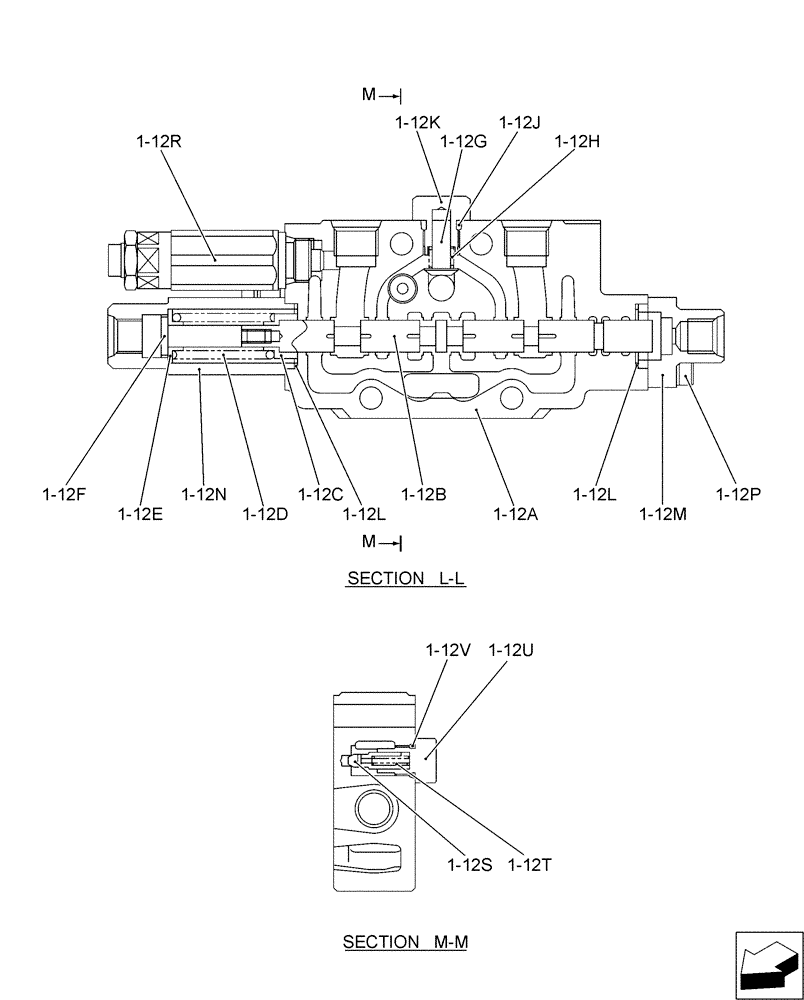

Запчасти Case CX17B (01-020[10]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS

PU64H00028F1

Valve Instal

1шт.

1

PU30V00017F2

CONTROL VALVE

1шт.

1-12

PU30V00029F1

CONTROL VALVE

1шт.

1-12a

NSS

NOT SOLD SEPARAT

Body

1шт.

1-12b

NSS

NOT SOLD SEPARAT

Spool

1шт.

1-12c

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

1-12d

NSS

NOT SOLD SEPARAT

Spring

1шт.

1-12e

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

1-12f

NSS

NOT SOLD SEPARAT

End, Spool

1шт.

1-12g

PH30V00003S006

POPPET

1шт.

1-12h

PH30V00003S007

SPRING

1шт.

1-12j

ZD12P01100

O-RING

1шт.

1-12k

PH30V00003S009

PLUG

1шт.

1-12l

PW30V01008S011

O-RING

2шт.

1-12m

PM30V00021S012

COVER

1шт.

1-12n

PM30V00021S013

COVER

1шт.

1-12p

PM30V00021S014

SCREW

Cap

4шт.

1-12r

PM22V00005FF

VALVE

Relief

1шт.

Refer To 01-020(12)

1шт.

1-12rl

ZD12P01500

O-RING

1шт.

1-12rm

2436R612S13

O-RING

1шт.

1-12rn

PH22V00003S013

O-RING

2шт.

1-12rp

PH22V00003S014

BACK-UP RING

2шт.

1-12rr

ZD12P01400

O-RING

1шт.

1-12s

2436U1317S81

POPPET

1шт.

1-12t

2436U1317S82

SPRING

1шт.

1-12u

PU30V00029S018

PLUG

1шт.

1-12v

PX30V00050S013

O-RING

1шт.

PU30V00029R100

KIT

Repair, Consists of Ref. 1-12B (1), 1-12C (1), 1-12D (1), 1-12E (1), 1-12F (1)

1шт.
