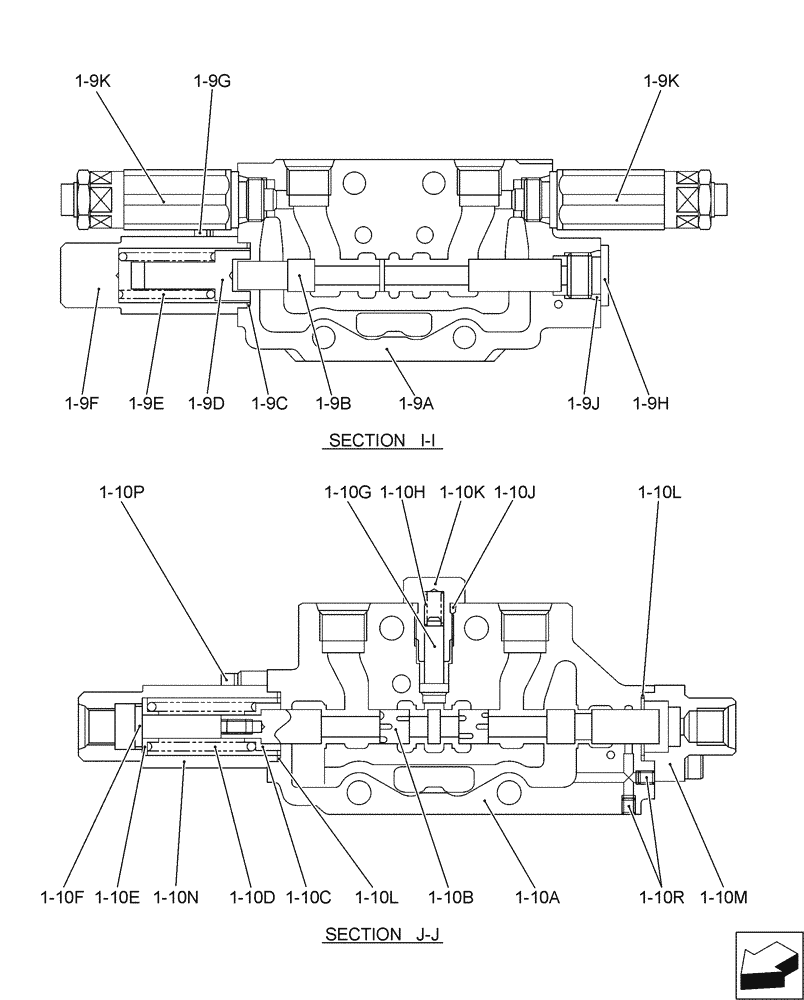

Запчасти Case CX17B (01-020[08]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS

PU64H00028F1

Valve Instal

1шт.

1

PU30V00017F2

CONTROL VALVE

1шт.

1-9

PU30V00026F1

CONTROL VALVE

1шт.

1-9a

NSS

NOT SOLD SEPARAT

Cover

1шт.

1-9b

NSS

NOT SOLD SEPARAT

Spool

1шт.

1-9c

PW30V01008S011

O-RING

1шт.

1-9d

PM30V00027S014

STOP

1шт.

1-9e

PW30V01013S013

SPRING

1шт.

1-9f

PM30V00027S015

COVER

1шт.

1-9g

PM30V00021S014

SCREW

Cap

2шт.

1-9h

YW01V00002S027

PLUG

1шт.

1-9j

ZD12P01400

O-RING

1шт.

1-9k

PR22V00004F9

VALVE

Relief

2шт.

Refer To 01-020(12)

1шт.

1-9kl

ZD12P01500

O-RING

1шт.

1-9km

2436R612S13

O-RING

1шт.

1-9kn

PH22V00003S013

O-RING

2шт.

1-9kp

PH22V00003S014

BACK-UP RING

2шт.

1-10

PU30V00027F1

CONTROL VALVE

1шт.

1-10a

NSS

NOT SOLD SEPARAT

Body

1шт.

1-10b

NSS

NOT SOLD SEPARAT

Spool

1шт.

1-10c

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

1-10d

NSS

NOT SOLD SEPARAT

Spring

1шт.

1-10e

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

1-10f

NSS

NOT SOLD SEPARAT

End, Spool

1шт.

1-10g

PW30V01009S002

POPPET

1шт.

1-10h

PH30V00014S013

SPRING

1шт.

1-10j

ZD12P01100

O-RING

1шт.

1-10k

PW30V01009S005

PLUG

1шт.

1-10l

PW30V01008S011

O-RING

2шт.

1-10m

PM30V00021S012

COVER

1шт.

1-10n

PM30V00021S013

COVER

1шт.

1-10p

PM30V00021S014

SCREW

Cap

4шт.

1-10r

2436U1317S22

PLUG

2шт.

PU30V00025R100

KIT

Repair, Consists of Ref. 1-10B (1), 1-10C (1), 1-10D (1), 1-10E (1), 1-10F (1)

1шт.
