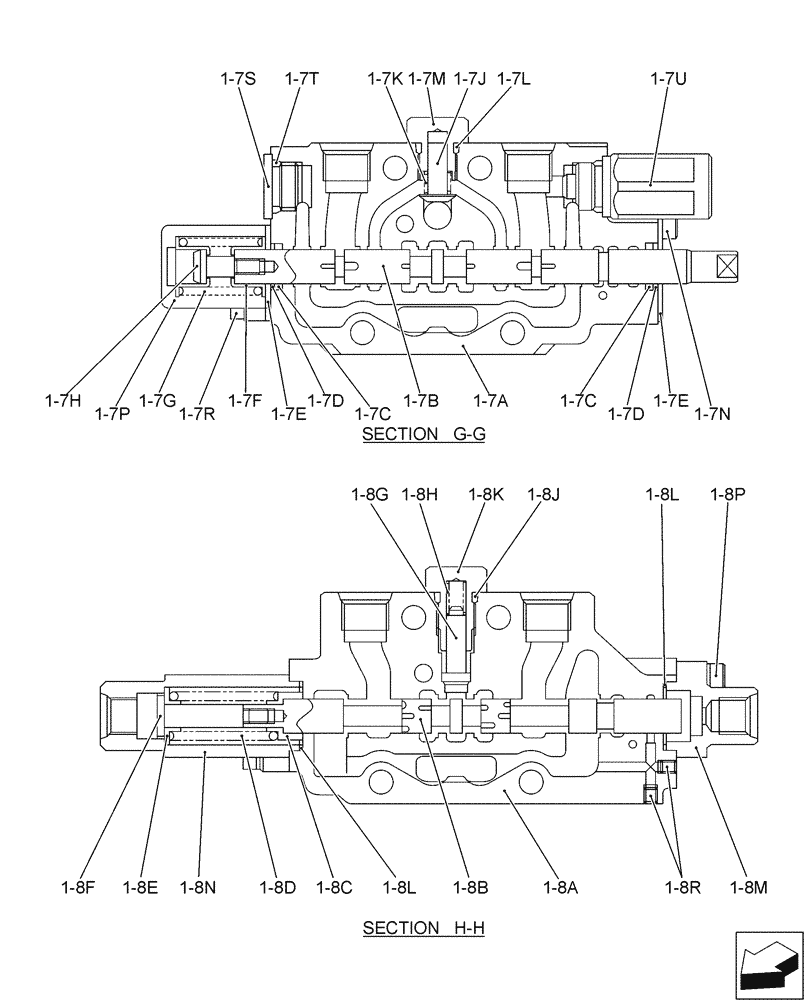

Запчасти Case CX17B (01-020[07]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS

PU64H00028F1

Valve Instal

1шт.

1

PU30V00017F2

CONTROL VALVE

1шт.

1-7

PU30V00024F1

CONTROL VALVE

1шт.

1-7a

NSS

NOT SOLD SEPARAT

Body

1шт.

1-7b

NSS

NOT SOLD SEPARAT

Spool

1шт.

1-7c

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

1-7d

NSS

NOT SOLD SEPARAT

Wiper, Dust

2шт.

1-7e

NSS

NOT SOLD SEPARAT

Plate

2шт.

1-7f

NSS

NOT SOLD SEPARAT

Spring, Seat

2шт.

1-7g

NSS

NOT SOLD SEPARAT

Spring

1шт.

1-7h

NSS

NOT SOLD SEPARAT

End, Spool

1шт.

1-7j

PH30V00003S006

POPPET

1шт.

1-7k

PH30V00003S007

SPRING

1шт.

1-7l

ZD12P01100

O-RING

1шт.

1-7m

PH30V00003S009

PLUG

1шт.

1-7n

PH30V00003S010

CAPSCREW

2шт.

1-7p

PH30V00003S011

COVER

1шт.

1-7r

PW30V00027S015

CAP

Screw

2шт.

1-7s

PL30V00007S034

PLUG

1шт.

1-7u

PH21V00001F1

BLEEDER VALVE

1шт.

Refer To 01-020(13)

1шт.

1-7ue

YR30V00009S009

BACK-UP RING

1шт.

1-7uf

ZD11P01090

O-RING

1шт.

1-7ug

ZD12P01400

O-RING

1шт.

1-7uh

ZD12P01500

O-RING

1шт.

1-8

PU30V00025F1

CONTROL VALVE

1шт.

1-8a

NSS

NOT SOLD SEPARAT

Body

1шт.

1-8b

NSS

NOT SOLD SEPARAT

Spool

1шт.

1-8c

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

1-8d

NSS

NOT SOLD SEPARAT

Spring

1шт.

1-8e

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

1-8f

NSS

NOT SOLD SEPARAT

End, Spool

1шт.

1-8g

PW30V01009S002

POPPET

1шт.

1-8h

PH30V00014S013

SPRING

1шт.

1-8j

ZD12P01100

O-RING

1шт.

1-8k

PW30V01009S005

PLUG

1шт.

1-8l

PW30V01008S011

O-RING

2шт.

1-8m

PM30V00021S012

COVER

1шт.

1-8n

PM30V00021S013

COVER

1шт.

1-8p

PM30V00021S014

SCREW

Cap

4шт.

1-8r

2436U1317S22

PLUG

2шт.

PU30V00024R100

KIT

Repair, Consists of Ref. 1-7B (1), 1-7C (1), 1-7D (1), 1-7E (1), 1-7F (1), 1-7G (1), 1-7H (1), 1-7J (1)

1шт.

PU30V00025R100

KIT

Repair, Consists of Ref. 1-8B (1), 1-8C (1), 1-8D (1), 1-8E (1), 1-8F (1)

1шт.
