Запчасти Case CX17B (01-020[06]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS

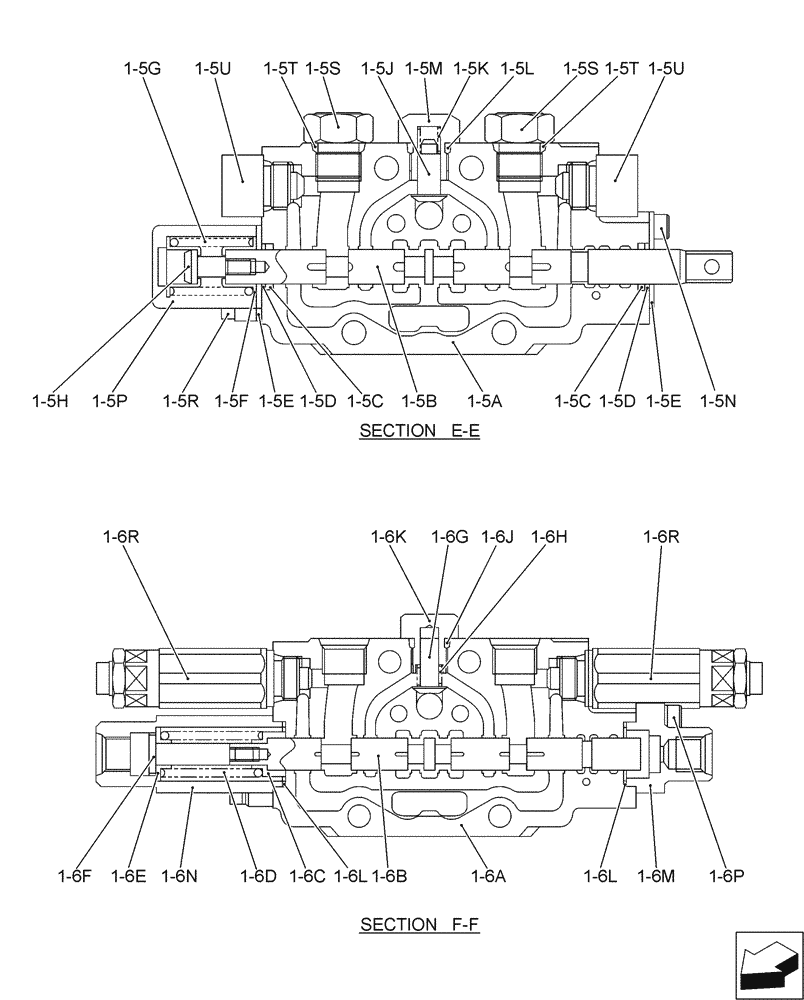

Схема запчастей Case CX17B - (01-020[06]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS
1-6r
1-6p
1-5d
1-6l
1-5t
1-6r
1-6j
1-5c
1-5j
1-6d
1-5d
1-5n
1-5k
1-6g
1-5e
1-5m
1-6l
1-6a
1-5e
1-5c
1-5t
1-5s
1-5f
1-5s
1-6k
1-6b
1-6h
1-5r
1-5u
1-6
1-6c
1-5b
1-5j
1-5g
1-5a
1-5p
1-6f
1-6n
1-6m
1-5h
1-5u
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU64H00028F1

Valve Instal

1шт.

1

PU30V00017F2

CONTROL VALVE

1шт.

1-5

PU30V00022F1

CONTROL VALVE

1шт.

1-5a

NSS

NOT SOLD SEPARAT

Body

1шт.

1-5b

NSS

NOT SOLD SEPARAT

Spool

1шт.

1-5c

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

1-5d

NSS

NOT SOLD SEPARAT

Wiper, Dust

2шт.

1-5e

NSS

NOT SOLD SEPARAT

Plate

2шт.

1-5f

NSS

NOT SOLD SEPARAT

Spring, Seat

2шт.

1-5g

NSS

NOT SOLD SEPARAT

Spring

1шт.

1-5h

NSS

NOT SOLD SEPARAT

End, Spool

1шт.

1-5j

PF30V00005S009

POPPET

1шт.

1-5k

PF30V00005S010

SPRING

1шт.

1-5l

ZD12P01100

O-RING

1шт.

1-5m

PF30V00005S012

PLUG

1шт.

1-5n

PH30V00003S010

CAPSCREW

2шт.

1-5p

PH30V00003S011

COVER

1шт.

1-5r

PW30V00027S015

CAP

2шт.

1-5s

PR30V00007S014

PLUG

2шт.

1-5t

ZD12P01400

O-RING

2шт.

1-5u

PH50T00001F1

PLUG

2шт.

Refer To 01-020(13)

1шт.

1-5ue

ZD85P00700

BACK-UP RING

1шт.

1-5uf

ZD12P00700

O-RING,1.6mm Thk x 6.8mm ID, 90 Duro

O-Ring

1шт.

1-5ug

ZD12P01400

O-RING

1шт.

1-6

PU30V00023F1

CONTROL VALVE

1шт.

1-6a

NSS

NOT SOLD SEPARAT

Body

1шт.

1-6b

NSS

NOT SOLD SEPARAT

Spool

1шт.

1-6c

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

1-6d

NSS

NOT SOLD SEPARAT

Spring

1шт.

1-6e

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

1-6f

NSS

NOT SOLD SEPARAT

End, Spool

1шт.

1-6g

PH30V00003S006

POPPET

1шт.

1-6h

PH30V00003S007

SPRING

1шт.

1-6j

ZD12P01100

O-RING

1шт.

1-6k

PH30V00003S009

PLUG

1шт.

1-6l

PW30V01008S011

O-RING

2шт.

1-6m

PM30V00021S012

COVER

1шт.

1-6n

PM30V00021S013

COVER

1шт.

1-6p

PM30V00021S014

SCREW

Cap

4шт.

1-6r

PM22V00005FF

VALVE

Relief

2шт.

Refer To 01-020(12)

1шт.

1-6rl

ZD12P01500

O-RING

1шт.

1-6rm

2436R612S13

O-RING

1шт.

1-6rn

PH22V00003S013

O-RING

2шт.

1-6rp

PH22V00003S014

BACK-UP RING

2шт.

1-6rr

ZD12P01400

O-RING

1шт.

PU30V00022R100

KIT

Repair, Consists of Ref. 1-5B (1), 1-5C (1), 1-5D (1), 1-5E (1), 1-5F (1), 1-5G (1), 1-5H (1)

1шт.

PU30V00023R100

KIT

Repair, Consists of Ref. 1-6B (1), 1-6C (1), 1-6D (1), 1-6E (1), 1-6F (1)

1шт.
