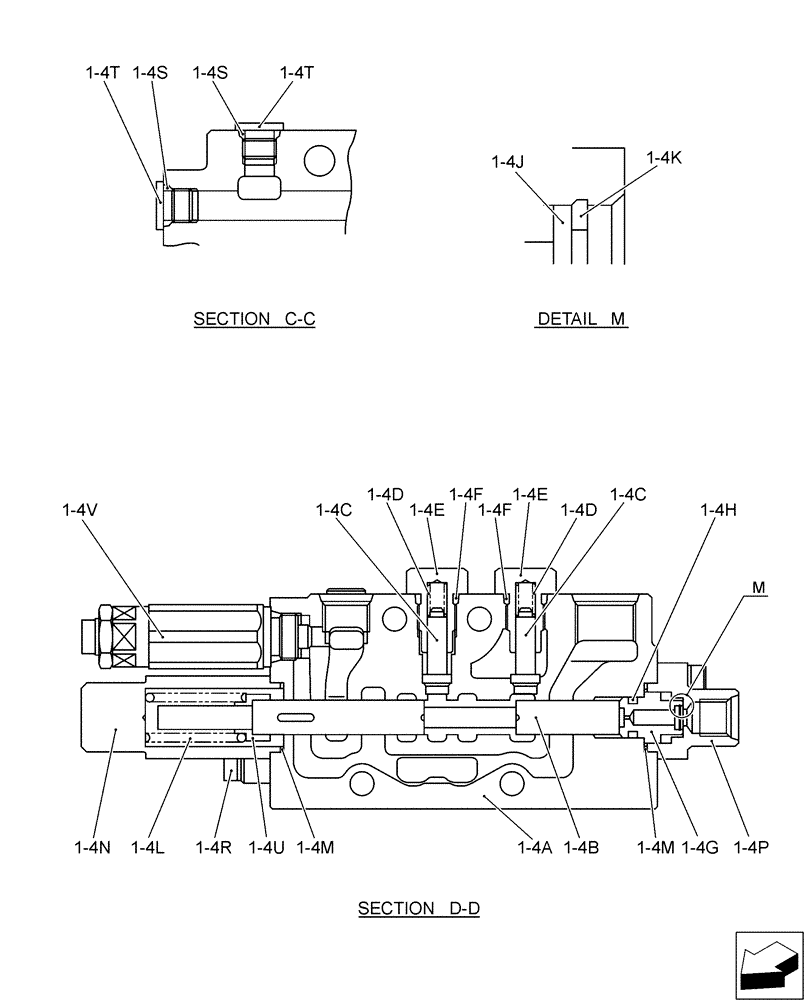

Запчасти Case CX17B (01-020[05]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS

PU64H00028F1

Valve Instal

1шт.

1

PU30V00017F2

CONTROL VALVE

1шт.

1-4

PU30V00021F1

CONTROL VALVE

1шт.

1-4a

NSS

NOT SOLD SEPARAT

Body

1шт.

1-4b

NSS

NOT SOLD SEPARAT

Spool

1шт.

1-4c

PW30V01009S002

POPPET

2шт.

1-4d

PH30V00014S013

SPRING

2шт.

1-4e

PW30V01009S005

PLUG

2шт.

1-4f

ZD12P01100

O-RING

2шт.

1-4g

PW30V01013S009

CASE

1шт.

1-4h

ZD12P01090

O-RING

1шт.

1-4j

2436U1115S24

FILTER

1шт.

1-4k

2483U282S2

RING

1шт.

1-4l

PW30V01013S013

SPRING

1шт.

1-4m

PW30V01008S011

O-RING

2шт.

1-4n

PM30V00027S015

COVER

1шт.

1-4p

PM30V00021S012

COVER

1шт.

1-4r

PM30V00021S014

SCREW

Cap

4шт.

1-4s

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

2шт.

1-4t

2436U1460S20

PLUG

2шт.

1-4u

PX30V00050S001

SEAT

1шт.

1-4v

PR22V00004FA

VALVE

Relief

1шт.

Refer To 01-020(12)

1шт.

1-4vl

ZD12P01500

O-RING

1шт.

1-4vm

2436R612S13

O-RING

1шт.

1-4vn

PH22V00003S013

O-RING

2шт.

1-4vp

PH22V00003S014

BACK-UP RING

2шт.

1-4vr

ZD12P01400

O-RING

1шт.
