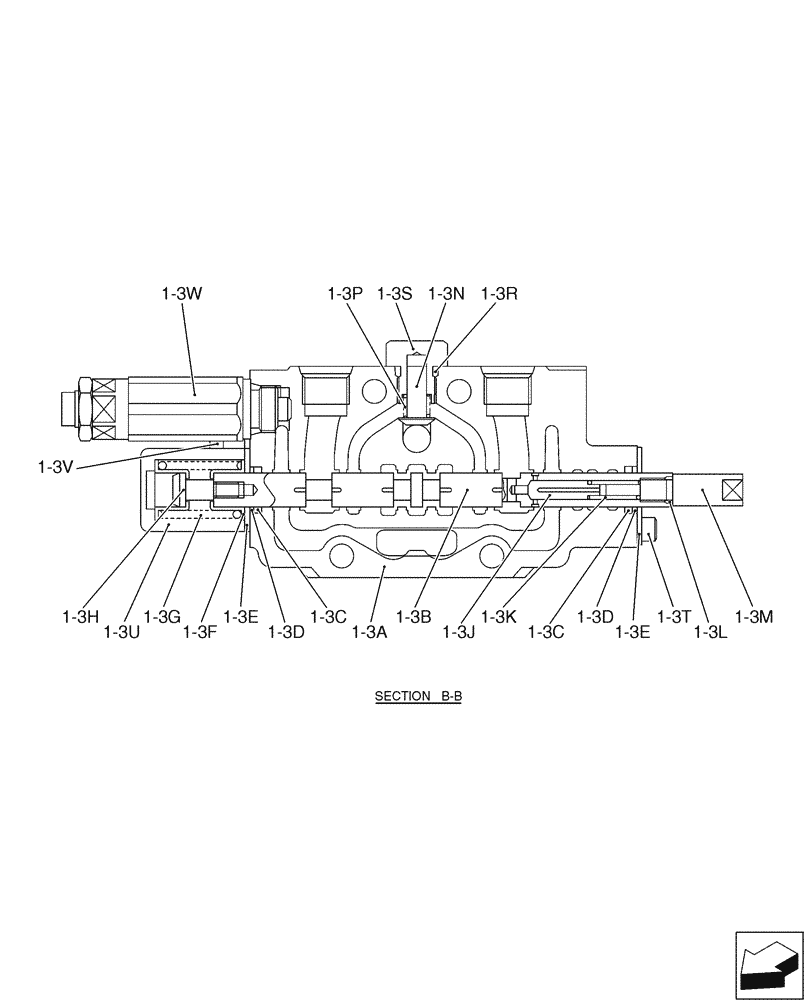

Запчасти Case CX17B (01-020[04]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS

PU64H00028F1

Valve Instal

1шт.

1

PU30V00017F2

CONTROL VALVE

1шт.

1-3

PU30V00020F1

CONTROL VALVE

1шт.

1-3a

NSS

NOT SOLD SEPARAT

Body

1шт.

1-3b

NSS

NOT SOLD SEPARAT

Spool

1шт.

1-3c

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

1-3d

NSS

NOT SOLD SEPARAT

Wiper, Dust

2шт.

1-3e

NSS

NOT SOLD SEPARAT

Plate

2шт.

1-3f

NSS

NOT SOLD SEPARAT

Spring, Seat

2шт.

1-3g

NSS

NOT SOLD SEPARAT

Spring

1шт.

1-3h

NSS

NOT SOLD SEPARAT

End, Spool

1шт.

1-3j

NSS

NOT SOLD SEPARAT

Poppet

1шт.

1-3k

NSS

NOT SOLD SEPARAT

Spring

1шт.

1-3l

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

1-3m

NSS

NOT SOLD SEPARAT

End, Spool

1шт.

1-3n

PH30V00003S006

POPPET

1шт.

1-3p

PH30V00003S007

SPRING

1шт.

1-3r

ZD12P01100

O-RING

1шт.

1-3s

PH30V00003S009

PLUG

1шт.

1-3t

PH30V00003S010

CAPSCREW

2шт.

1-3u

PH30V00003S011

COVER

1шт.

1-3v

PW30V00027S015

CAP

Screw

2шт.

1-3w

PM22V00005F4

VALVE PRESSURE RELIE

1шт.

Refer To 01-020(12)

1шт.

1-3wl

ZD12P01500

O-RING

1шт.

1-3wm

2436R612S13

O-RING

1шт.

1-3wn

PH22V00003S013

O-RING

2шт.

1-3wp

PH22V00003S014

BACK-UP RING

2шт.

1-3wr

ZD12P01400

O-RING

1шт.

PU30V00020R100

REPAIR KIT

Consists of Ref. 1-3B (1), 1-3C (1), 1-3D (1), 1-3E (1), 1-3F (1), 1-3G (1), 1-3H (1), 1-3J (1), 1-3K (1), 1-3L (1), 1-3M (1)

1шт.
