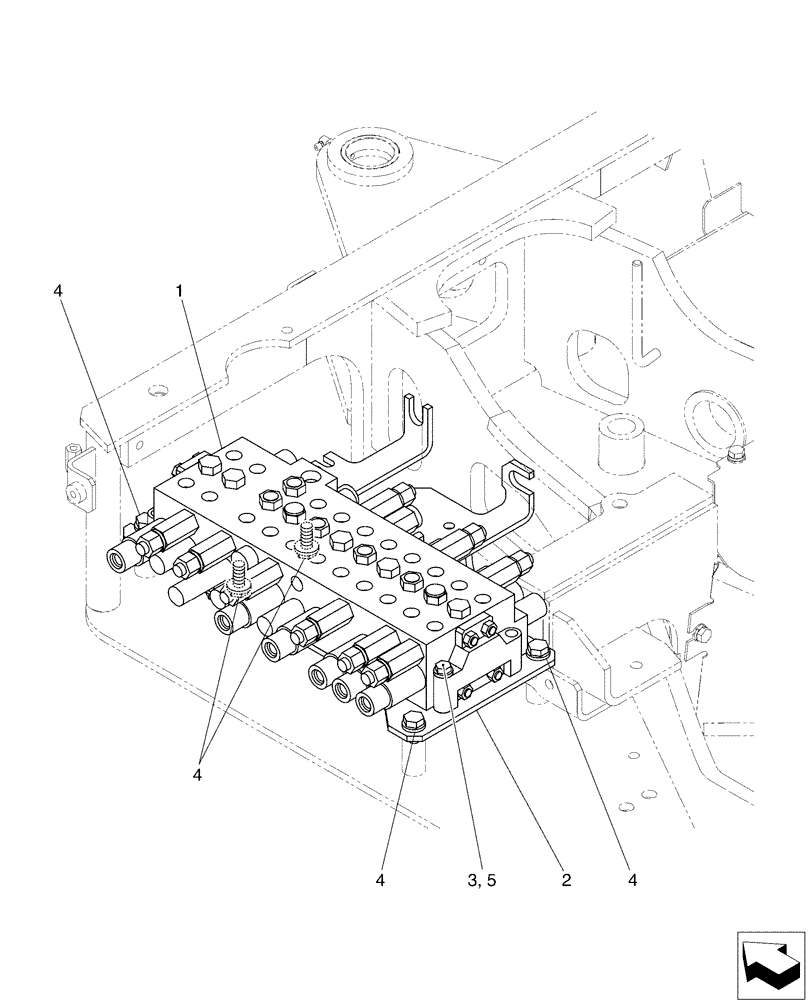

Запчасти Case CX17B (01-020[01]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS

PU64H00028F1

Valve Instal

1шт.

1

PU30V00017F2

CONTROL VALVE

1шт.

Refer To 01-020(02) Thru 01-020(13)

1шт.

1-1

PU30V00017S001

COVER

1шт.

2

PU64H01051P1

BRACKET

Bracket

1шт.

3

ZS18C08060

SCREW,Hex, M8 x 60mm

Cap

1шт.

4

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

5шт.

5

ZW16H08000

WASHER

1шт.
