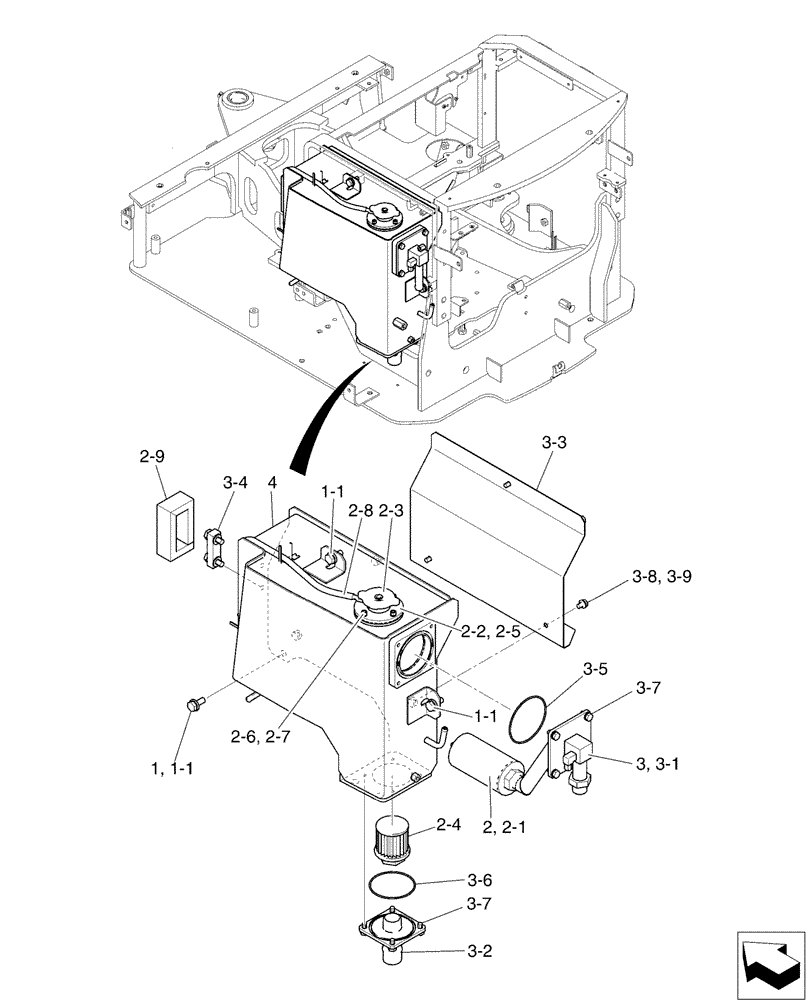

Запчасти Case CX17B (01-015) - TANK INSTAL, HYD (35) - HYDRAULIC SYSTEMS

PU33H00026F1

Tank Instal, Hyd.

1шт.

1

PU33H00019F1

Tank Instal, Hyd.

1шт.

1-1

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

3шт.

2

PU33H00024F1

Tank Assy., Hyd.

1шт.

2-1

PU50V00005F1

HYDRAULIC OIL FILTER

Return

1шт.

2-2

PU33H01065P1

NECK FILLER

1шт.

2-3

PU33H01068P1

CAP

1шт.

2-4

PU50V00002P1

FILTER STRAINER

1шт.

2-5

2446U260S8

PACKING

1шт.

2-6

ZS28C06016

SCREW,Hex Socket Head, M6 x 16mm

Cap

4шт.

2-7

ZW26K06000

LOCK WASHER

4шт.

2-8

PA21P01005D3

HOSE

1шт.

2-9

PU33H01083P1

RUBBER SEAL

1шт.

3

PU33H00027F1

Tank Assy.

1шт.

3-1

PU33H01096P1

COVER

, Serial Range: PU09-08001-PU09-08453

1шт.

3-1

PU33H01096P2

COVER

, Start Serial: PU09-08454

1шт.

3-2

PU33H01077P1

COVER

1шт.

3-3

PU33H01058P1

COVER

1шт.

3-4

PM58S00001P1

LEVEL GAUGE

Oil

1шт.

3-5

ZD11G09000

O-RING,89.40mm ID x 95.60mm OD x 3.10mm

1шт.

3-6

ZD11G08000

O-RING,79.40mm ID x 85.60mm OD x 3.10mm

1шт.

3-7

ZS18C08016

SCREW,Hex, M8 x 16mm

Cap

8шт.

3-8

ZS18C08012

SCREW,Hex, M8 x 12mm

Cap

3шт.

3-9

ZW16P08000

WASHER

11шт.

4

PU33H00021P2

TANK

1шт.
