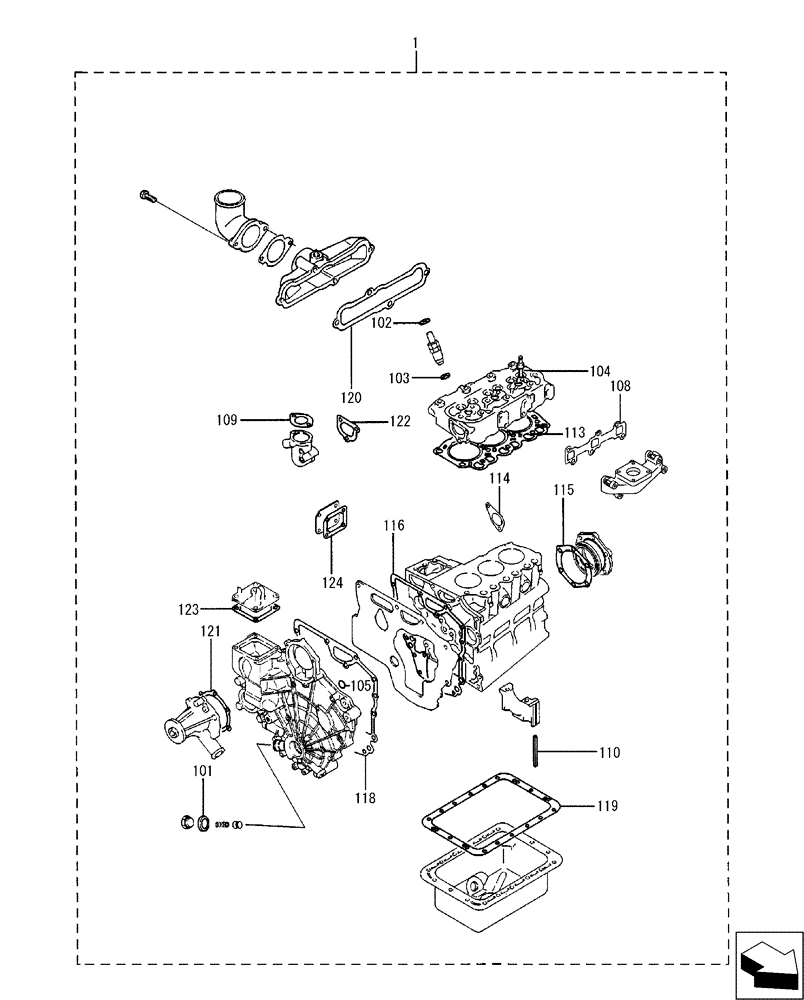

Запчасти Case CX17B (08-031) - REPAIR GASKET KIT (10) - ENGINE

1

VA30L9406032

GASKET

Kit, Includes Ref. 101 - 125

1шт.

101

VAMD000312

GASKET

Oil Drain

2шт.

102

VAMD068355

GASKET

Fuel Return

3шт.

103

VAMD070717

SEAL

Holder

3шт.

104

VAMD115472

SEAL

Valve Stem

6шт.

105

VAF315001100

O-RING

2шт.

106

VAMM404878

O-RING

Filter Cup, Not Shown

1шт.

107

VAMM404881

O-RING

Element, Not Shown

1шт.

108

VAMM43212901

GASKET

Exhaust Manf.

1шт.

109

VAMM43213502

GASKET

Thermostat

1шт.

110

VAMM432214

SEAL

Side

4шт.

111

VA30A1100101

GASKET

O/pump Cover, Not Shown

1шт.

112

VA30A3000100

GASKET

1шт.

113

VA30L0101102

GASKET

Cylinder Head

1шт.

114

VA30L0705101

GASKET

1шт.

115

VA30L0705201

GASKET

Oil Seal Case

1шт.

116

VA30L0705300

GASKET

Front Plate

1шт.

117

VA30L1101201

GASKET

Housing, Not Shown

1шт.

118

VA30L1105101

GASKET

Gear Case

1шт.

119

VA30L1305200

GASKET

Oil Pan

1шт.

120

VA30L3005201

GASKET

Intake Manf.

1шт.

121

VA30L4505101

GASKET

Water Pump

1шт.

122

VA30L4605100

GASKET

Thermo Fitt

1шт.

123

VA30L6305101

GASKET

Gov. Cover

1шт.

124

VA30L6305201

GASKET

Tie-rod Cover

1шт.

125

VA3063625901

GASKET

Not Shown

1шт.
