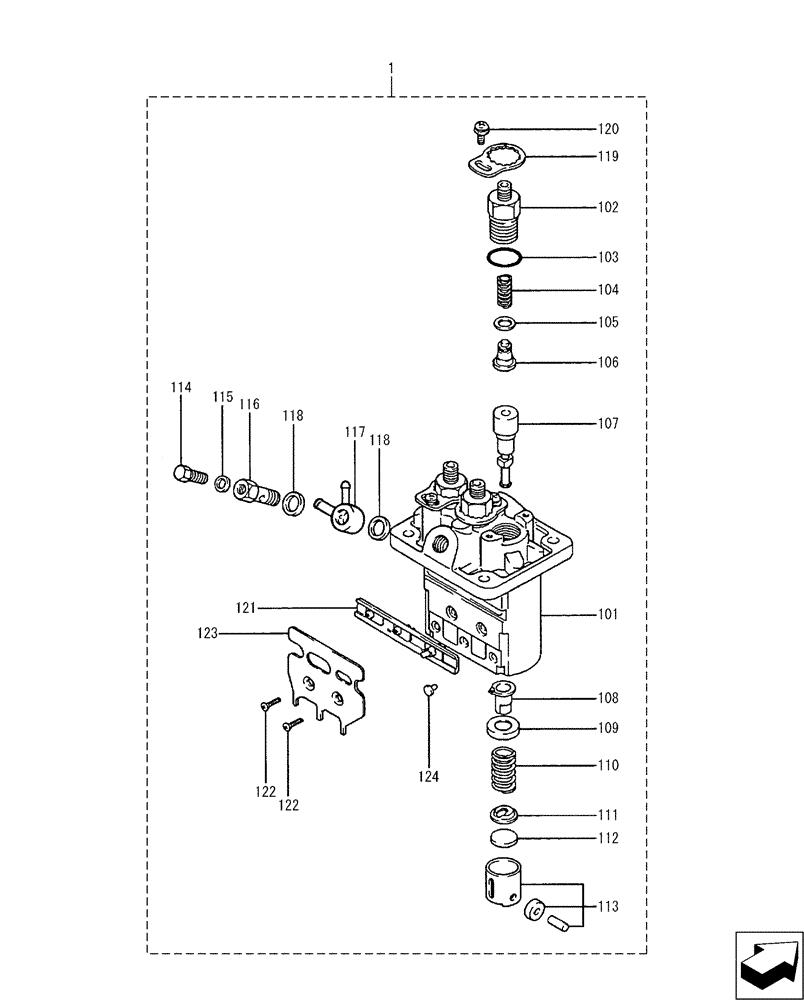

Запчасти Case CX17B (08-022[02]) - FUEL INJECTION PUMP (10) - ENGINE

1

VA30L9893110

PUMP

Fuel Inj., Includes Ref. 101 - 124

1шт.

101

VA0901103730

HOUSING

1шт.

102

VA0901300390

HOLDER

Delivery

3шт.

103

VA0901390400

O-RING

3шт.

104

VA0901360530

SPRING

Delivery

3шт.

105

VA0901370130

GASKET

Delivery

3шт.

106

VA0901402110

VALVE

3шт.

107

VA0901506770

ELEMENT

3шт.

108

VA0901600140

SLEEVE

3шт.

109

VA0901630140

SPRING

Seat, Upper

3шт.

110

VA0901640220

SPRING

Plunger

3шт.

111

VA0901650170

SPRING

Seat, Lower

3шт.

112

VA0903110320

PLATE

Tappet Shim, T=1.85

1шт.

112

VA0903110330

PLATE

Tappet Shim, T=1.90

1шт.

112

VA0903110340

PLATE

Tappet Shim, T=1.95

1шт.

112

VA0903110350

PLATE

Tappet Shim, T=2.00

1шт.

112

VA0903110360

PLATE

Tappet Shim, T=2.05

1шт.

112

VA0903110370

PLATE

Tappet Shim, T=2.10

1шт.

112

VA0903110380

PLATE

Tappet Shim, T=2.15

1шт.

112

VA0903110390

PLATE

Tappet Shim, T=2.20

1шт.

112

VA0903110400

PLATE

Tappet Shim, T=2.25

1шт.

112

VA0903110410

PLATE

Tappet Shim, T=2.30

1шт.

112

VA0903110420

PLATE

Tappet Shim, T=2.35

1шт.

112

VA0903110430

PLATE

Tappet Shim, T=2.40

1шт.

112

VA0903110440

PLATE

Tappet Shim, T=2.45

1шт.

112

VA0903110450

PLATE

Tappet Shim, T=2.50

1шт.

113

VA0901700220

TAPPET

3шт.

114

VA0902440010

SCREW

Air Bleeder

1шт.

115

VA0902480010

WASHER

Drain Screw

1шт.

116

VA0902450310

SCREW

Hollow

1шт.

117

VA0922170590

SWIVEL HITCH HEAD TR

Nipple

1шт.

118

VA0902510010

WASHER

Drain Union

2шт.

119

VA0902300070

PLATE

Lock

3шт.

120

VA9490075390

SCREW

W/Washer

3шт.

121

VA0902100560

RACK

Control

1шт.

122

VA9490020500

SCREW

2шт.

123

VA0906911020

BRACKET

Stop Wire

1шт.

124

VA0901830090

GUIDE PIN

Tappet

3шт.
