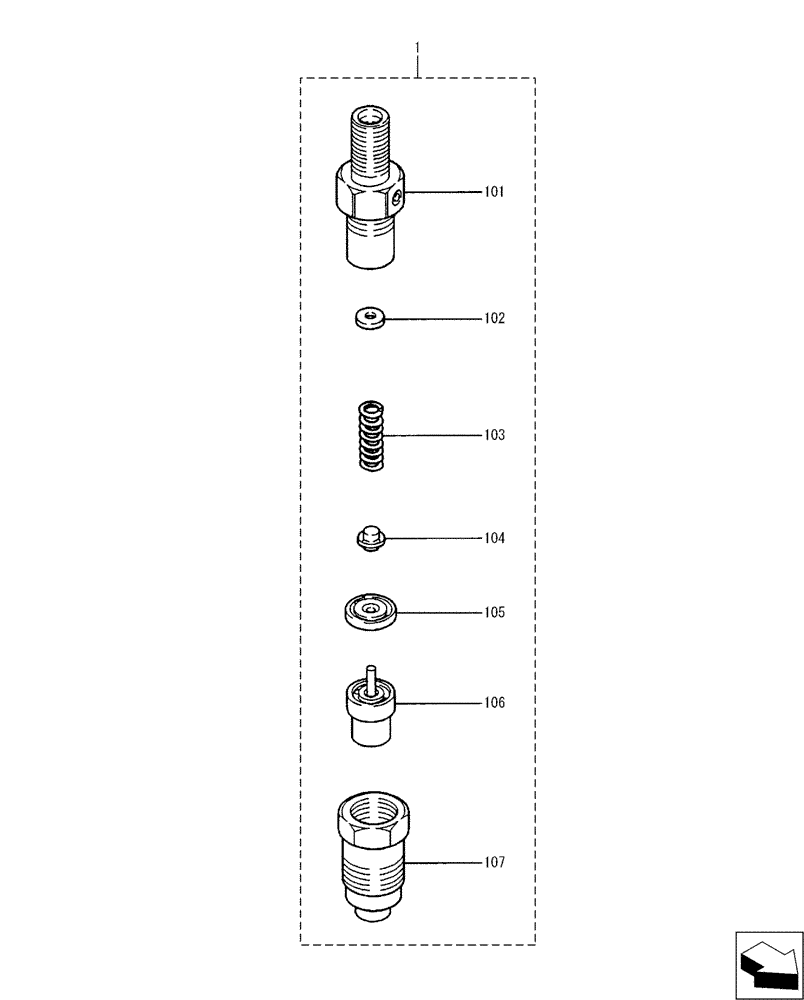

Запчасти Case CX17B (08-018) - NOZZLE & NOZZLE HOLDER (10) - ENGINE

1

VA31A6101010

NOZZLE HOLDER

Includes Ref. 101-107

3шт.

101

NSS

NOT SOLD SEPARAT

Body Sub Assy.

3шт.

102

VA0931751810

WASHER

T=1.25

1шт.

102

VA0931751830

WASHER

T=1.30

1шт.

102

VA0931751850

WASHER

T=1.35

1шт.

102

VA0931751870

WASHER

T=1.40

1шт.

102

VA0931751890

WASHER

T=1.45

1шт.

102

VA0931751910

WASHER

T=1.50

1шт.

102

VA0931751930

WASHER

T=1.55

1шт.

102

VA0931751950

WASHER

T=1.60

1шт.

102

VA0931751970

WASHER

T=1.65

1шт.

102

VA0931751990

WASHER

T=1.70

1шт.

103

VA0931270360

SPRING

Pressure

3шт.

104

VA0931210380

PIN

Pressure

3шт.

105

VA0931740070

SPACER

Piece, Distance

3шт.

106

VA0934006650

NOZZLE

3шт.

107

VA0931641351

NUT

Nozzle Retaining

3шт.
