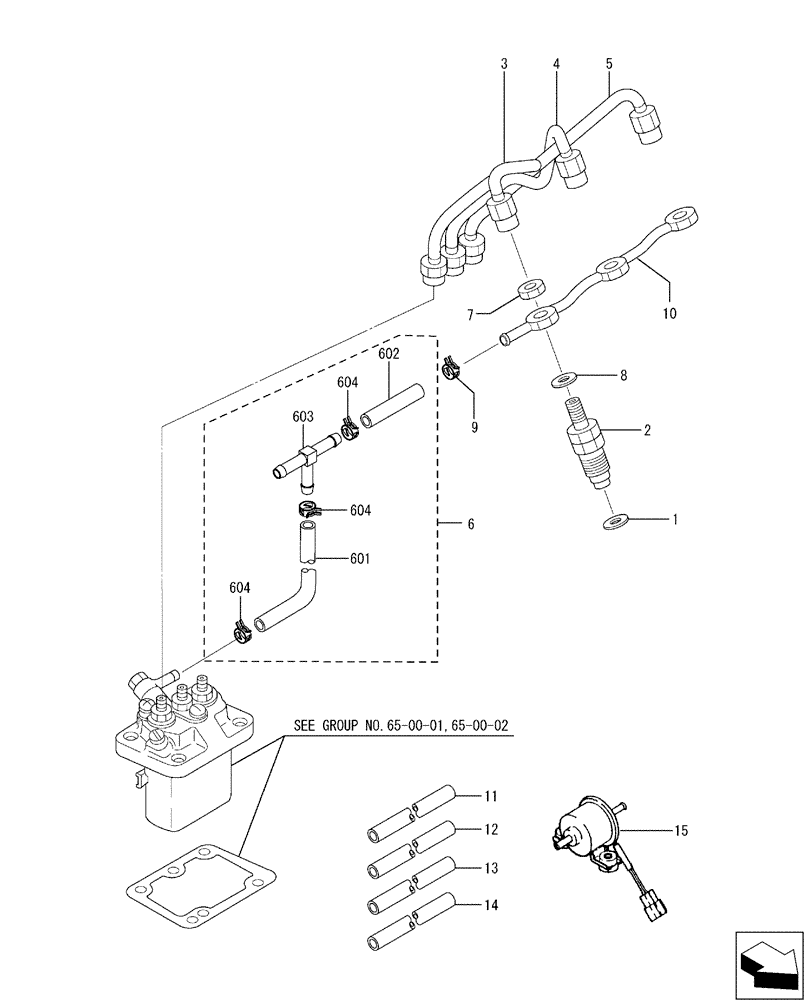

Запчасти Case CX17B (08-017) - NOZZLE & FUEL INJECTION PIPE (10) - ENGINE

1

VAMD070717

SEAL

Holder

3шт.

2

VA31A6101010

NOZZLE HOLDER

3шт.

Refer To 08-018

1шт.

3

VA30L6107400

PIPE

Injection No. 1

1шт.

4

VA30L6107500

PIPE

Injection No. 2

1шт.

5

VA30L6107600

PIPE

Injection No. 3

1шт.

6

VA30L6102900

RETURN PIPE

Fuel, Includes Ref. 601 - 604

1шт.

601

VAMS604016

HOSE

Fuel, L=160

1шт.

602

VAMM430131

HOSE

Fuel

1шт.

603

VA31A6101500

TEE

Joint, Three Way

1шт.

604

VAMS660169

HOSE CLIP

3шт.

7

VAMD068353

NUT

3шт.

8

VAMD068355

GASKET

Fuel Return

3шт.

9

VAF430001200

HOSE CLAMP

1шт.

10

VAMM436471

PIPE

Fuel Return

1шт.

11

VAMS602131

HOSE

Fuel, 6x900

1шт.

12

VAMS602147

HOSE

Fuel, 6x1300

1шт.

13

VAMS602037

HOSE

Fuel, 6x230

1шт.

14

VAMS602155

HOSE

Fuel, 6x1700

1шт.

15

VA31A6000600

PUMP

Fuel

1шт.
