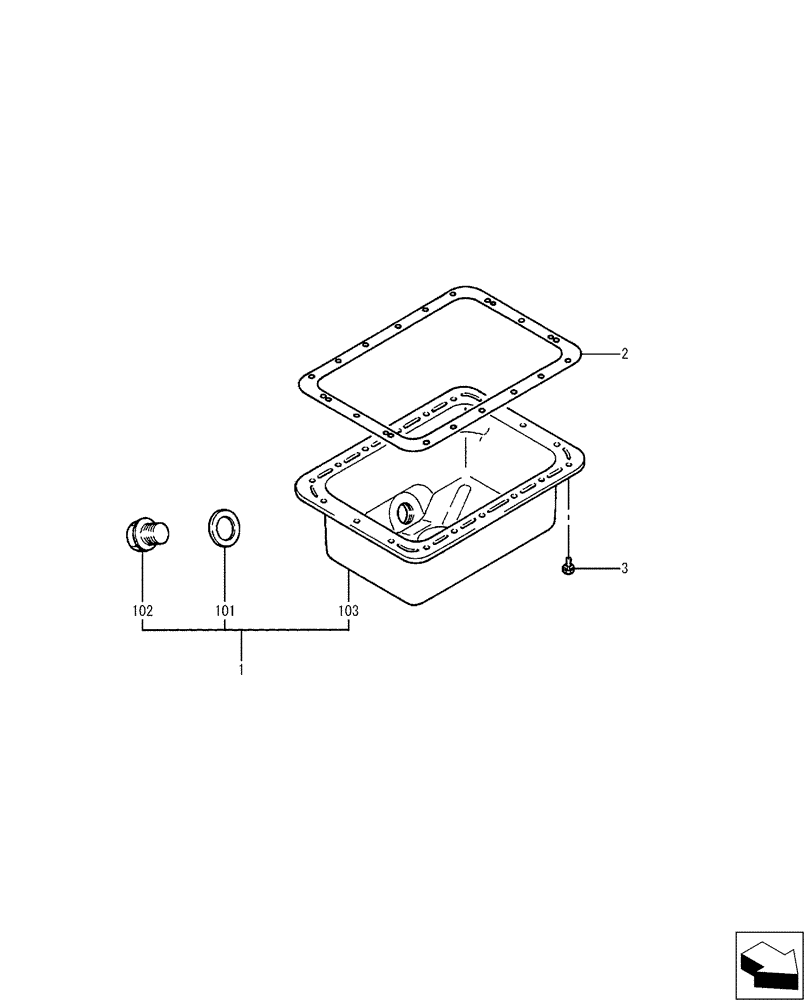

Запчасти Case CX17B (08-009) - OIL PAN (10) - ENGINE

1

VAMM437065

ENGINE OIL PAN

Includes Ref. 101 - 103

1шт.

101

VAMD000312

GASKET

Oil Drain

1шт.

102

VAMD000318

PLUG

Oil Drain

1шт.

103

NSS

NOT SOLD SEPARAT

Pan Sub Assy., Oil

1шт.

2

VA30L1305200

GASKET

Oil Pan

1шт.

3

VAMF241223

BOLT

W/Washer

18шт.
