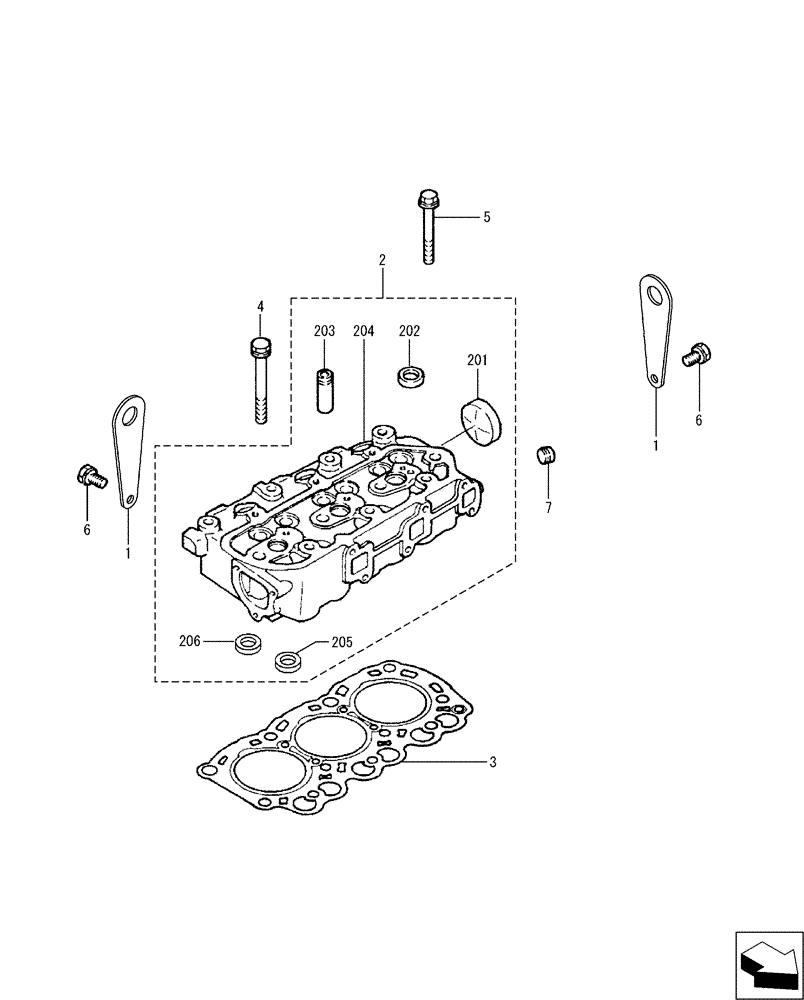

Запчасти Case CX17B (08-001) - CYLINDER HEAD (10) - ENGINE

1

VA30L0103500

HANGER

Engine

2шт.

2

VA30L0121090

CYLINDER HEAD

Includes Ref. 201 - 206

1шт.

201

VAMD000427

PLUG

Cap, Sealing

1шт.

202

VAMF665536

SEAL

Cap

3шт.

203

NSS

NOT SOLD SEPARAT

Guide, Valve

6шт.

204

NSS

NOT SOLD SEPARAT

Head, Cylinder

1шт.

205

VAMM433300

RING

Valve Seat In.

3шт.

206

VAMM433301

RING

Valve Seat Ex.

3шт.

3

VA30L0101102

GASKET

Cylinder Head

1шт.

4

VAMM43212501

BOLT

Cylinder Head

8шт.

5

VAMD020566

BOLT

Flange

3шт.

6

VAMF240051

BOLT

W/Washer

2шт.

7

VAMS661140

PLUG

Tapered

1шт.
