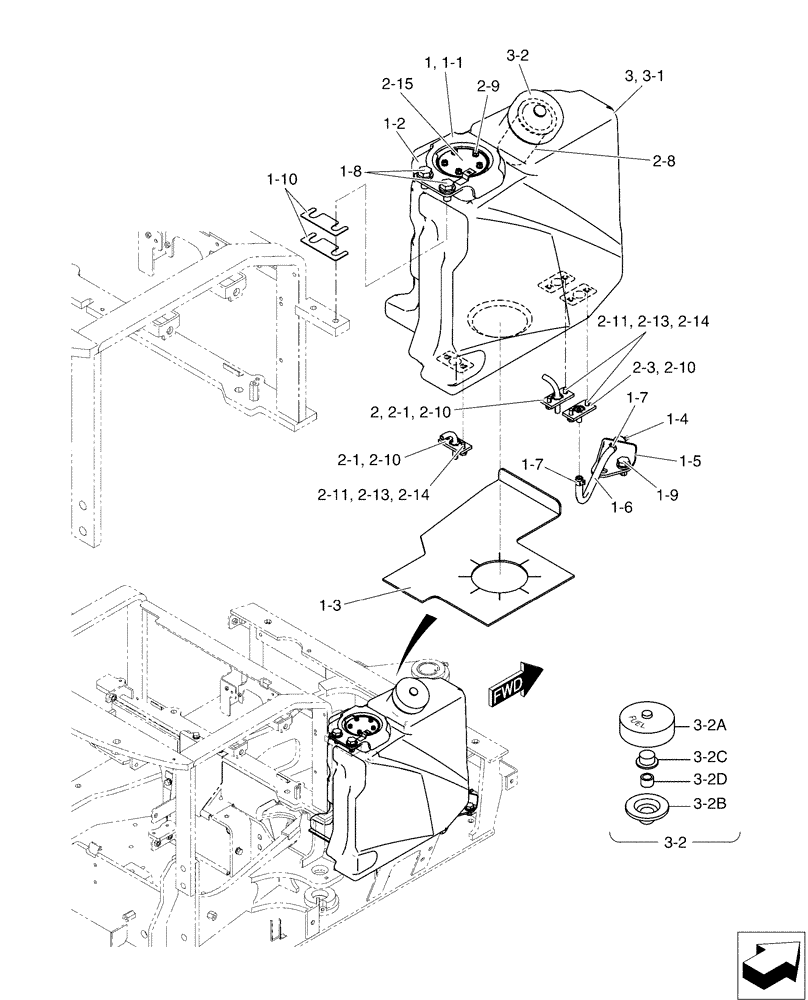

Запчасти Case CX17B (01-014) - TANK INSTAL, FUEL (10) - ENGINE

PU20P00015F1

Tank Instal, Fuel

1шт.

1

PU20P00014F1

Tank Instal, Fuel

1шт.

1-1

PU20P01055P1

BRACKET

1шт.

1-2

PU20P01054P1

RUBBER

1шт.

1-3

PU20P01028P1

RUBBER SLEEVE

1шт.

1-4

YN05P00010S007

COCK, DRAIN

1шт.

1-5

PM05P01046P1

BOSS

1шт.

1-6

PA21P01005DK

HOSE

1шт.

1-7

PH05P01088D6

CLIP

2шт.

1-8

ZM73C12025

BOLT,M12x25mm - Course Thread

Sems

2шт.

1-9

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

1шт.

1-10

PU20P01036P1

SHIN

(1.0)

2шт.

2

PU20P00013F1

Tank Assy., Fuel

1шт.

2-1

PU20P01022P1

FLANGE

, Serial Range: pu09-08001-pu09-09551

2шт.

2-1

PU20P01067P1

FLANGE

, Start Serial: pu09-09552

2шт.

2-3

PU20P01038P1

FLANGE

1шт.

2-8

2446R314

FILTER STRAINER

1шт.

2-9

ZM61C05012

BOLT

Sems

5шт.

2-10

2445Z1453D2

O-RING

3шт.

2-11

ZS18C06016

SCREW,Hex, M6 x 16mm

Cap

6шт.

2-13

ZW16P06000

WASHER

6шт.

2-14

ZW26X06000

LOCK WASHER

6шт.

2-15

PU52S00013F1

SENSOR

Level

1шт.

3

PU20P00017P1

FUEL TANK

1шт.

3-1

PU20P00012P1

FUEL TANK

, Serial Range: pu09-08001-pu09-08412

1шт.

3-1

PU20P00012P2

TANK

, Start Serial: pu09-08413

1шт.

3-2

PA20P01018F1

CAP

, Serial Range: pu09-08001-pu09-08412

1шт.

3-2

PM20P01019F1

CAP ASSY.

, Start Serial: pu09-08413

1шт.

3-2a

PA20P01019P1

CAP

, Serial Range: pu09-08001-pu09-08412

1шт.

3-2a

PM20P01010P1

CAP

, Serial Range: pu09-08413-pu09-08453

1шт.

3-2a

PM20P01010P2

CAP

, Start Serial: pu09-08454

1шт.

3-2b

PA20P01021P1

PACKING

1шт.

3-2c

PA20P01020P1

PACKING

1шт.

3-2d

PA20P01022P1

RUBBER SLEEVE

1шт.
