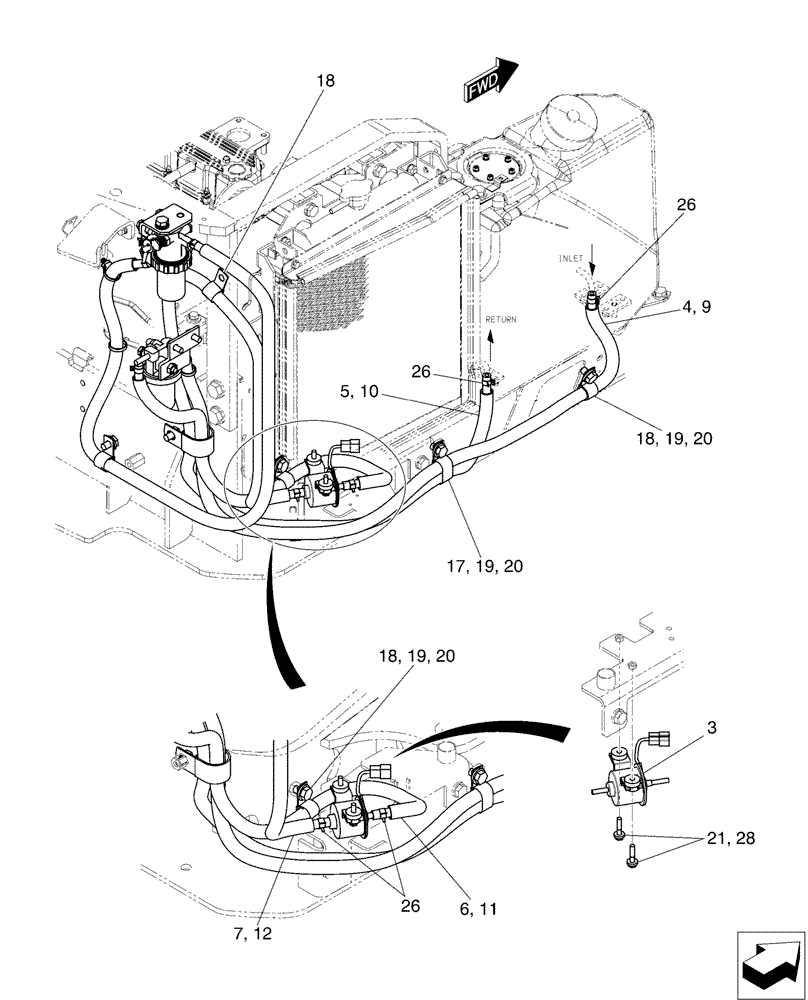

Запчасти Case CX17B (01-013[02]) - FUEL LINE - BTW PU09-08001 - PU09-09384 (10) - ENGINE

PU21P00003F1

Fuel Lines

1шт.

1

PU02P01026P1

SEPARATOR

Water

1шт.

2

PU21P01010P1

FUEL FILTER

1шт.

3

PU22P00001P1

FUEL PUMP

1шт.

4

PB21P01012D6

HOSE

1шт.

5

PU21P01004D2

HOSE

1шт.

6

PU21P01004D4

HOSE

1шт.

7

PU21P01004D1

HOSE

1шт.

8

PU21P01004D8

HOSE

1шт.

9

YX06H01004D6

TUBE

1шт.

10

YX06H01004D2

TUBE

1шт.

1

YX06H01004D3

TUBE

1шт.

12

YX06H01004DE

TUBE

1шт.

13

YX06H01004DG

TUBE

1шт.

14

PU21P01008P1

BRACKET

1шт.

15

PU21P01012P1

BRACKET

1шт.

16

ZC46X38014

CLIP

1шт.

17

ZC48X18011

CLIP

1шт.

18

ZC46X19011

CLIP

4шт.

19

ZS18C10016

SCREW,Hex, M10 x 16mm

Cap

5шт.

20

ZW16H10000

WASHER

5шт.

21

ZS18C06030

SCREW,Hex, M6 x 30mm

Cap

2шт.

22

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

2шт.

23

ZS18F10020

BOLT,Hex, M10 x 20mm

Capscrew

1шт.

24

ZW16P10000

WASHER

1шт.

25

ZW26X10000

LOCK WASHER

1шт.

26

PH05P01088D5

CLIP

10шт.

27

YN13E01375P1

CLIP,M8 x 8.20mm Shank

1шт.

28

ZW16H06000

WASHER

2шт.

29

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

3шт.

30

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

2шт.

31

ZS18C08070

SCREW,Hex, M8 x 70mm

1шт.

32

ZW16P08000

WASHER

1шт.

33

ZW26X08000

LOCK WASHER

Lock

1шт.
